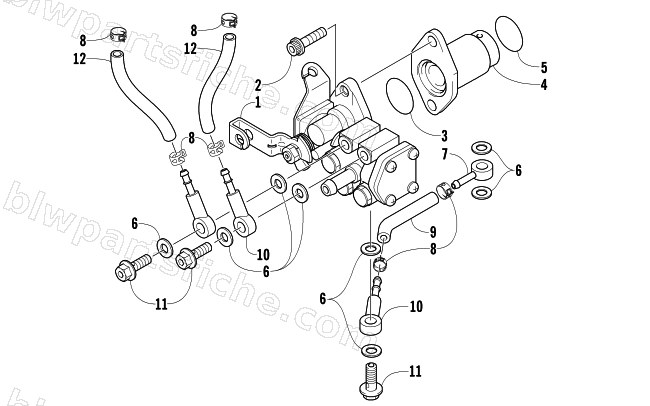

2005 Arctic Cat KING CAT 900 EFI — OIL PUMP
2005 KING CAT 900 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-730 | PUMP ASSY,OIL | 1 | $683.95 | |
| 2 | 3004-893 | BOLT, 6 X 25 | 1 | $16.49 | |
| 3 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 4 | 3007-916 | RETAINER,OIL PUMP INPUT SHAFT | 1 | $133.95 | |
| 5 | 3005-126 | O RING | 1 | $4.26 | |
| 6 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 7 | 3003-661 | UNION,M2 | 1 | $13.95 | |
| 8 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 9 | 3005-357 | HOSE, M2.5X7X600 | 1 | $24.77 | |
| 10 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 11 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 12 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 |
