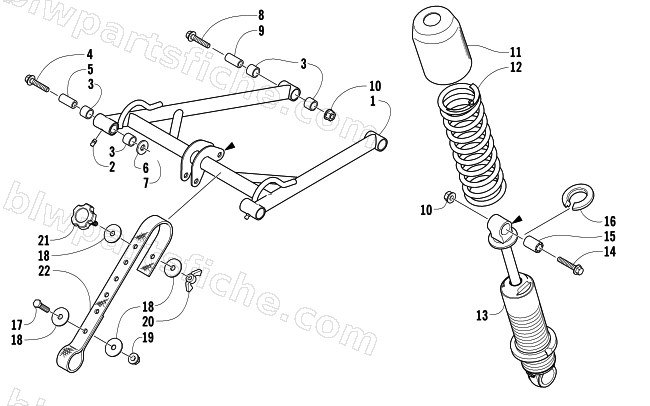

REAR SUSPENSION FRONT ARM ASSEMBLY
2005 KING CAT 900 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-053 | ARM,FRONT-L/W (DK PEWTER)-FAB | 1 | $220.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 5 | 1604-162 | AXLE,FRONT ARM | 1 | $10.97 | |
| 6 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 7 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 8 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 9 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 10 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 11 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 12 | 2604-565 | SPRING,COMP-FRONT ARM (#110)-TITANIUM | 1 | $476.95 | |
| 13 | 1704-294 | SHOCK,FRT ARM-ASSY (IMPACT EXT) | 1 | $395.95 | |
| 14 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 15 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 16 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 17 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 18 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 19 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 20 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 21 | 1623-044 | KNOB,ADJUSTER-1/4-20 X 1.0 LNG | 1 | $6.75 | |
| 22 | 2604-657 | STRAP,LIMITER-FRONT ARM | 1 | $20.63 |
