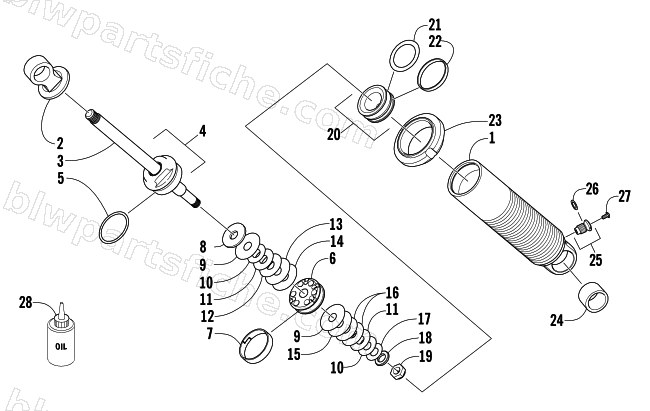

2005 Arctic Cat KING CAT 900 EFI — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2005 KING CAT 900 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-294 | SHOCK,FRT ARM-ASSY (IMPACT EXT) | 1 | $395.95 | |
| 1 | 2604-596 | BODY,FRT SHOCK-ALUM-IMP-EXTR | 1 | $206.95 | |
| 2 | 1604-825 | EYELET,SHOCK .630 DIA X .950 LGTH-YEL | 1 | $68.95 | |
| 3 | 2604-365 | SHAFT,SHOCK-CHROME-5.858 | 1 | $66.95 | |
| 4 | 1703-453 | END CAP,.900-W/ FLATS-ASSY | 1 | $75.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 7 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 8 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 9 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 10 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 13 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 14 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 15 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 16 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 17 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 18 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 19 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 20 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 23 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 24 | 2604-156 | BUSHING,SHOCK-FRT.ARM-GRAY | 1 | $8.21 | |
| 25 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 26 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 27 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 28 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
