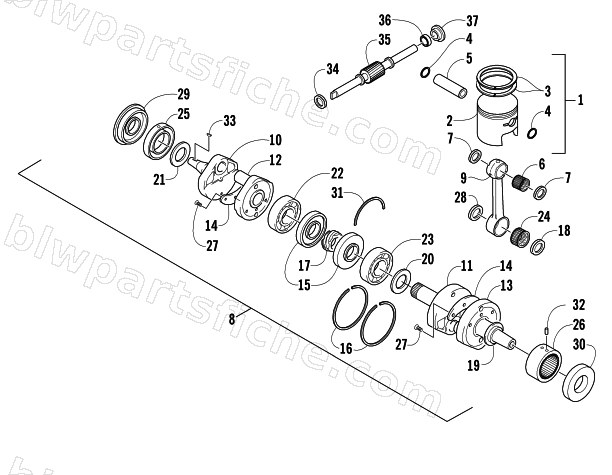

PISTON AND CRANKSHAFT
2005 KING CAT 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-393 | PISTON ASSY, 860 L/C | 1 | $267.95 | |
| 3 | 3006-394 | RING SET,PISTON 860 L/C | 1 | $114.95 | |
| 4 | 3008-585 | SNAP RING,M24 | 1 | $3.71 | |
| 5 | 3006-395 | PIN,PISTON 860 L/C | 1 | $43.95 | |
| 6 | 3008-583 | BEARING,NEEDLE,M24 | 1 | $41.95 | |
| 7 | 3008-582 | WASHER, M24X36X2 | 1 | $13.73 | |
| 8 | 3006-918 | CRANKSHAFT, ASSY. 05-900 | 1 | $2,381.95 | |
| 9 | 3005-867 | ROD, CONNECTING | 1 | $234.95 | |
| 10 | 3005-868 | CRANKSHAFT, R | 1 | $555.95 | |
| 11 | 3006-917 | CRANKSHAFT,M | 1 | $406.95 | |
| 12 | 3006-919 | WHEEL,CRANKSHAFT | 1 | $427.95 | |
| 13 | 3006-920 | CRANKSHAFT,L | 1 | $436.95 | |
| 14 | 3005-872 | BALANCER, CRANKSHAFT | 1 | $57.95 | |
| 15 | 3005-873 | RACE, MIDDLE CRANK SEAL | 1 | $90.95 | |
| 16 | 3005-874 | RING, MIDDLE CRANK SEAL | 1 | $34.95 | |
| 17 | 3005-882 | GEAR, OIL PUMP DRIVE | 1 | $201.95 | |
| 18 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 19 | 3005-848 | WASHER | 1 | $13.73 | |
| 20 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 21 | 3005-849 | WASHER | 1 | $15.11 | |
| 22 | 3005-850 | BEARING | 1 | $190.95 | |
| 23 | 3005-851 | BEARING | 1 | $292.95 | |
| 24 | 3008-584 | BEARING,NEEDLE,M30 | 1 | $73.95 | |
| 25 | 3005-852 | BEARING | 1 | $217.95 | |
| 26 | 3005-853 | BEARING | 1 | $287.95 | |
| 27 | 3007-440 | SCREW | 1 | $2.06 | |
| 28 | 3008-603 | WASHER, CRANK PIN NO. 1-M30X38 | 1 | $4.68 | |
| 29 | 3005-855 | SEAL, OIL | 1 | $88.95 | |
| 30 | 3005-856 | SEAL, OIL | 1 | $85.95 | |
| 31 | 3005-857 | C-RING | 1 | $20.63 | |
| 32 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 33 | 3010-070 | KEY,TYPE 3 M3(FASTENER) | 1 | $3.99 | |
| 34 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 35 | 3005-883 | GEAR, OIL PUMP DRIVEN | 1 | $131.95 | |
| 36 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 37 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 |
