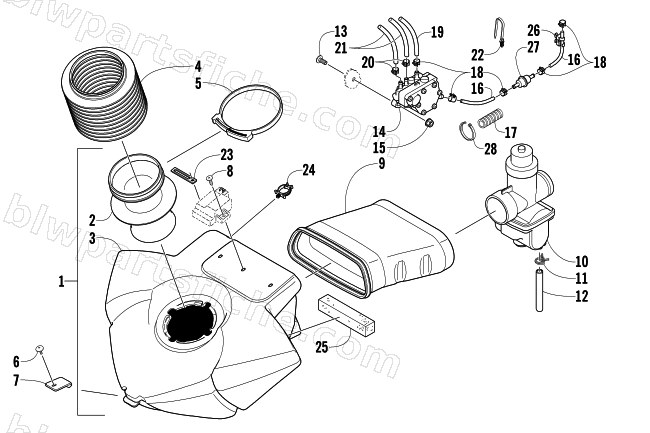

2005 Arctic Cat M5 141 — AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
2005 M5 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-611 | SILENCER,AIR-ASSY (RB 0770-720) | 1 | $125.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 10 | 0770-697 | CARB,ASS'Y VM34-612 | 1 | $427.95 | |
| 10 | 0770-708 | CARB,ASS'Y-VM34-613 | 1 | $427.95 | |
| 11 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 12 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 13 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 14 | 1670-537 | PUMP, FUEL (500AA) | 1 | $51.95 | |
| 15 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 16 | 0610-629 | HOSE,GAS LINE-100 FT. | 1 | $335.95 | |
| 16 | 0610-628 | HOSE,GASLINE-25 FT. | 1 | $99.95 | |
| 17 | 0716-507 | LOOM,HI-TEMP (26" LONG) | 1 | $3.44 | |
| 18 | 1623-234 | CLAMP, HOSE-13.08mm ID | 1 | $1.09 | |
| 19 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 20 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 21 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 21 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 22 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 25 | 0617-485 | FOAM,BELLYPAN/AIRBOX | 1 | $3.16 | |
| 26 | 1623-336 | CLIP,HOSE/CABLE-.375/.50 | 1 | $5.37 | |
| 27 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 28 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
