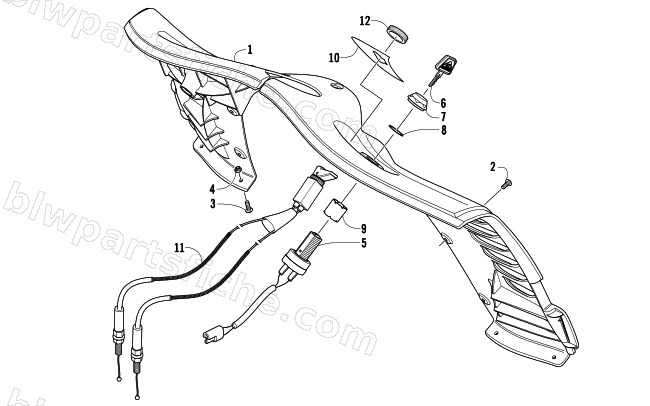

2005 Arctic Cat M5 141 — CONSOLE AND SWITCH ASSEMBLY
2005 M5 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-443 | CONSOLE,CARB | 1 | $47.95 | |
| 2 | 8017-425 | SCREW,MACH-TSTRH 10-24 X 3/8 GR2 BLK | 1 | $0.40 | |
| 3 | 8017-427 | SCREW,MACH-TSTRH 10-24 X 1/2 GR2 BLK | 1 | $0.45 | |
| 4 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 5 | 0609-728 | SWITCH,IGNITION-NORM OPEN (LOW) | 1 | $54.95 | |
| 7 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 10 | 7611-099 | DECAL,CONSOLE-CARB | 1 | $36.95 | |
| 11 | 0687-179 | CABLE,CHOKE (M5 AA) | 1 | $91.95 | |
| 12 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 |
