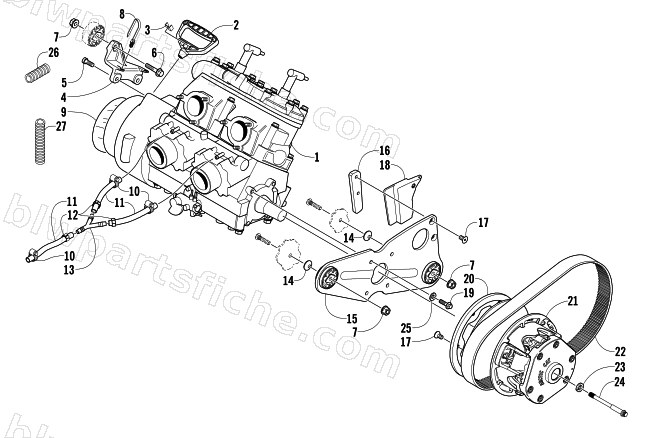

2005 Arctic Cat M5 141 — ENGINE AND RELATED PARTS
2005 M5 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-415 | ENGINE,500 L/C AA (M) | 1 | $2,126.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 0708-461 | BRKT,MTG-ENGINE-R/H-MACH | 1 | $43.95 | |
| 5 | 8413-830 | SCREW,CAP-HFH M8X1.25 X30 CL10.9 SILV | 1 | $1.92 | |
| 6 | 8020-136 | SCREW,CAP-HFH 5/16-18 X 1.75 G5 Z&Y | 1 | $15.11 | |
| 7 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 8 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 9 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 10 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 11 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 12 | 0610-581 | CLAMP, HOSE-14.5MM TO 17.0MM | 1 | $2.61 | |
| 13 | 1670-596 | FITTING,Y-5/16 | 1 | $3.44 | |
| 14 | 0623-987 | WASHER, BELLVILE-.312 X .930 | 1 | $2.19 | |
| 15 | 0708-442 | BRKT,MTG-ENGINE-L/H-ASSY | 1 | $432.95 | |
| 16 | 0608-430 | SPACER,MTG-SNUBBER | 1 | $39.95 | |
| 17 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 18 | 0608-433 | SNUBBER,RUBBER-WIDE | 1 | $24.95 | |
| 19 | 8413-825 | SCREW,CAP-HFH M8X1.25 X25 CL10.9 SILV | 1 | $1.95 | |
| 20 | 0645-443 | RING,CLUTCH DAMPER-MAGNESIUM | 1 | $102.95 | |
| 21 | 0746-838 | CLUTCH,DRIVE-UNCAL-8.25 30MM/S | 1 | $648.95 | |
| 22 | 0627-036 | BELT,DRIVE-S-3C-1.448"WX45.024"OC-DC | 1 | $133.95 | |
| 23 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 24 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 25 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 26 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 27 | 0619-994 | LOOM,PROTECTIVE-3/4 ID-6"-CTL | 1 | $1.64 |
