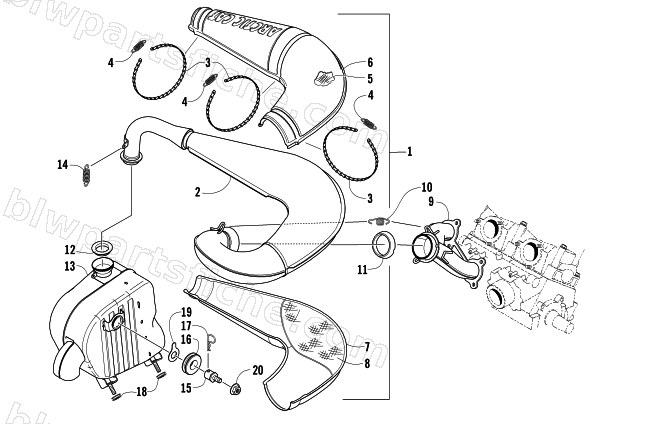

EXHAUST ASSEMBLY
2005 M5 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-285 | CHAMBER,EXPANSION-FAB | 1 | $637.95 | |
| 2 | 1712-284 | CHAMBER,EXPANSION-PTD BLK | 1 | $417.95 | |
| 3 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 3 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 4 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 5 | 1612-693 | PACKING,EXP CHAMBER-TOP | 1 | $16.49 | |
| 6 | 1612-696 | COVER, EXP CHAMBER-UPR | 1 | $118.95 | |
| 7 | 1612-695 | COVER, EXP CHAMBER-LWR | 1 | $122.95 | |
| 8 | 1612-694 | PACKING,EXP CHAMBER-BOTTOM | 1 | $16.49 | |
| 9 | 1712-041 | MANIFOLD, EXHAUST-MACH | 1 | $291.95 | |
| 10 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 11 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 12 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 13 | 1712-146 | RESONATOR,EXHAUST-PTD BLK | 1 | $522.95 | |
| 14 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 15 | 1623-569 | PIN,MTG-RES/CHASSIS | 1 | $19.25 | |
| 16 | 1623-375 | GROMMET,RUBBER-3/4 ID x1 5/8OD x1/4 GRV | 1 | $5.51 | |
| 17 | 1623-379 | CLIP,HAIRPIN-5/8 TO 3/4 | 1 | $2.88 | |
| 18 | 1612-873 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $4.26 | |
| 19 | 1612-927 | WASHER,RESONATOR MTG W/TAB | 1 | $15.11 | |
| 20 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 |
