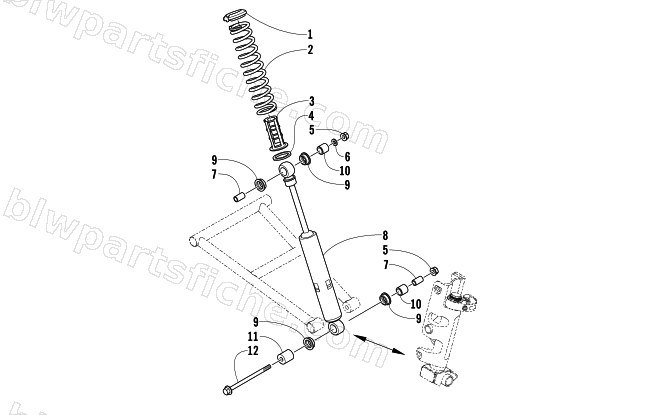

2005 Arctic Cat M5 141 — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2005 M5 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 1703-787 | SPRING,SHOCK-SKI(120# X 12")-PTD PC GRN | 1 | $67.95 | |
| 3 | 2603-533 | SLEEVE,WEAR - 3.85" | 1 | $20.95 | |
| 4 | 2603-532 | RETAINER,LOWER SPRING -Z&Y | 1 | $4.95 | |
| 5 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 6 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 7 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 8 | 2603-385 | SHOCK,SKI-RFX (40") | 1 | $332.95 | |
| 9 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 10 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 11 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 12 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 |
