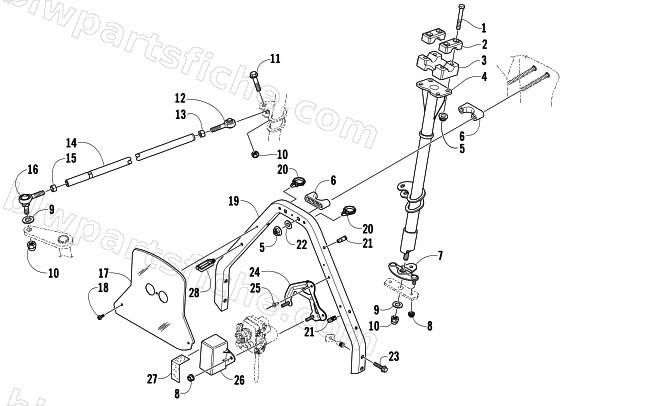

STEERING POST ASSEMBLY
2005 M6 EFI 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 2 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 3 | 0605-507 | LOCK,ADJUSTING-STEERING | 1 | $60.95 | |
| 4 | 1705-368 | POST,STEERING-PTD BLK | 1 | $133.95 | |
| 5 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 6 | 0605-576 | BLOCK,MTG-STEERING POST | 1 | $6.75 | |
| 7 | 1705-168 | STOP,STEERING POST-PTD BLK | 1 | $33.95 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 10 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 11 | 8004-225 | SCREW,CAP-HH 3/8-24X1.50 G5 Z&Y | 1 | $1.23 | |
| 12 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 13 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 14 | 0605-726 | TUBE,TIE ROD-.625 X 19.62" (3/8-24) | 1 | $26.95 | |
| 15 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 16 | 1605-011 | ROD END,LH-3/8-24 W/STUD | 1 | $43.95 | |
| 17 | 5606-501 | PANEL,CLOSE OUT-FORMED | 1 | $89.95 | |
| 18 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 19 | 1705-260 | TUBE,SUPPORT-STEERING POST-MACH/FORMED | 1 | $125.95 | |
| 20 | 0623-454 | CLIP,SNAP-IN (SPEEDO-CABLE) | 1 | $2.95 | |
| 21 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 22 | 0623-942 | WASHER,FLAT HARD-5/16X1X.060 | 1 | $3.71 | |
| 23 | 8020-137 | SCREW,CAP-HFH 5/16-18 X 2.00 G5 Z&Y | 1 | $1.23 | |
| 24 | 2706-814 | PLATE,MTG-SERVO MOTOR-ASSY | 1 | $32.95 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 27 | 3606-814 | FOIL,PROTECTIVE-COVER-SERVO MOTOR | 1 | $1.78 | |
| 28 | 1623-407 | CLIP,ROUTING-7/16 X 1.02 | 1 | $1.95 |
