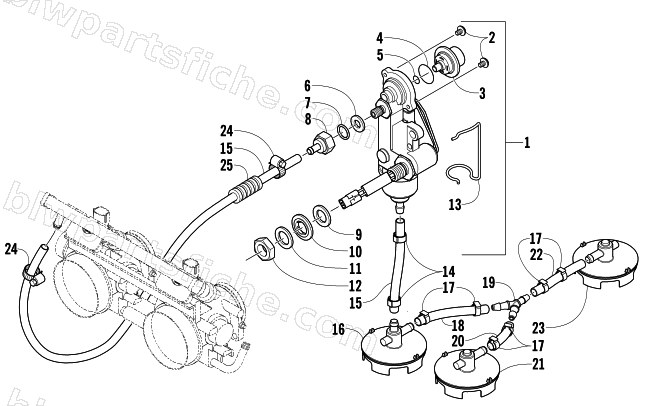

2005 Arctic Cat M6 EFI 153 — FUEL PUMP ASSEMBLY
2005 M6 EFI 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-851 | PUMP,FUEL-PFA-32C- 2 AMP/300KPA | 1 | $1,068.95 | |
| 2 | 1670-412 | SCREW, RETAINING | 1 | $2.95 | |
| 3 | 1670-536 | REGULATOR, PRESSURE | 1 | $262.95 | |
| 4 | 1670-532 | O-RING,REGULATOR-SMALL | 1 | $3.71 | |
| 5 | 1670-533 | O-RING,REGULATOR-LARGE | 1 | $3.99 | |
| 6 | 1670-535 | GROMMET,OUTLET SEAL | 1 | $10.97 | |
| 7 | 1670-476 | O-RING | 1 | $8.21 | |
| 8 | 1670-475 | FITTING | 1 | $50.95 | |
| 9 | 1670-534 | GROMMET,MTG SEAL | 1 | $6.89 | |
| 10 | 1670-479 | WASHER | 1 | $15.11 | |
| 11 | 1670-478 | WASHER | 1 | $1.78 | |
| 12 | 1670-477 | NUT,HEX - M16 X 2.0 Z&C | 1 | $0.95 | |
| 13 | 1670-579 | WIRE RETAINER, FUEL PUMP | 1 | $29.95 | |
| 14 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 15 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 16 | 1670-701 | PICKUP,FUEL-(MP16)TOP BARB | 1 | $93.95 | |
| 17 | 1670-706 | CLAMP,HOSE- CRIMP (.383 OPEN) | 1 | $3.71 | |
| 18 | 1670-695 | PICKUP,FUEL-3 MP-ASSY | 1 | $444.95 | |
| 19 | 1670-705 | FITTING,Y-PLASTIC | 1 | $24.77 | |
| 21 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 23 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 24 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 25 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 |
