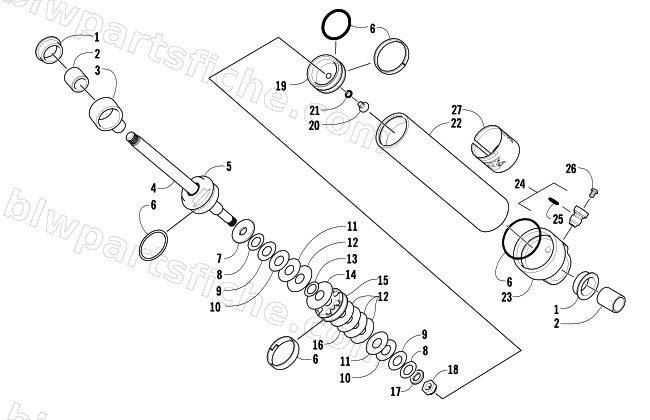

2005 Arctic Cat M7 EFI 141 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2005 M7 EFI 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-467 | SHOCK,REAR ARM-ZERO PRO (162") | 1 | $440.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 1604-223 | BUSHING,FRONT ARM SHOCK-.160" LIP | 1 | $16.95 | |
| 3 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 9 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 10 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 11 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 14 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 15 | 1604-437 | PISTON, .039 ORIFICE | 1 | $36.95 | |
| 16 | 0603-889 | VALVE, SHOCK 1.250 X.015 | 1 | $6.95 | |
| 17 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 18 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 19 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 20 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 21 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 22 | 2604-864 | BODY,SHOCK - ALUM-7.25" | 1 | $212.95 | |
| 23 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 24 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 25 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 26 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 27 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 |
