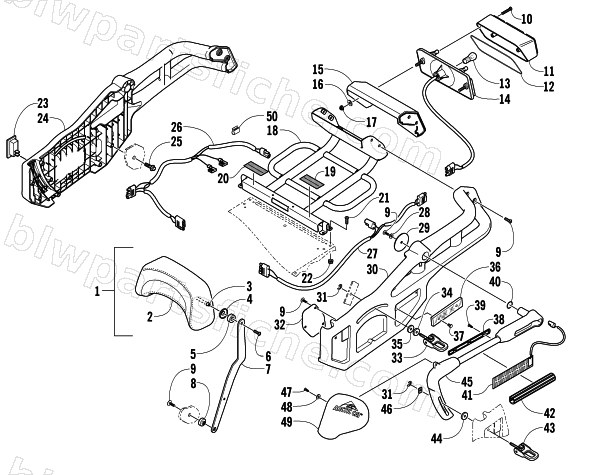

BACKREST AND TAILLIGHT ASSEMBLY
2005 PANTERA 550 (S2005PTCCAUSB)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-658 | BACKREST W/COVER-PANTERA | 1 | $413.95 | |
| 2 | 2706-657 | COVER, BACKREST-PANTERA | 1 | $224.95 | |
| 3 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 4 | 0723-003 | WASHER,CUP-PTD BLK | 1 | $9.59 | |
| 5 | 0616-547 | BLOCK,TENSION-BACKREST | 1 | $5.65 | |
| 6 | 0623-566 | SCREW,MACH-HSBH 3/8-16X1.25 BLK Z | 1 | $1.64 | |
| 7 | 2706-126 | ARM,ADJ BACKREST-RH-PTD BLK | 1 | $121.95 | |
| 7 | 2706-127 | ARM,ADJ BACKREST-LH-PTD BLK | 1 | $121.95 | |
| 8 | 1606-903 | SPACER,BACKREST ADJ. | 1 | $5.95 | |
| 9 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 10 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 11 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 12 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 13 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 14 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 15 | 1606-689 | COVER,TAILLIGHT | 1 | $120.95 | |
| 16 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 1706-230 | BRKT,MTG-RACK/TAILLIGHT-PTD BLK | 1 | $215.95 | |
| 19 | 4611-043 | DECAL, CAUTION-LATCH/PAYLOAD-FRCH | 1 | $12.95 | |
| 20 | 4611-042 | DECAL, CAUTION-LATCH/PAYLOAD-ENGL | 1 | $12.95 | |
| 21 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 22 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 23 | 0609-370 | SWITCH,PASSENGER HANDWARMER | 1 | $46.95 | |
| 25 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 26 | 0686-702 | HARNESS,RACK-RH | 1 | $65.95 | |
| 27 | 0686-701 | HARNESS,RACK-LH | 1 | $74.95 | |
| 28 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 29 | 2706-128 | RETAINER,HANDHOLD-PTD BLK | 1 | $13.73 | |
| 31 | 0623-826 | E-RING, 3/16 | 1 | $0.26 | |
| 32 | 2706-129 | RETAINER,HANDHOLD-PASSENGER-PTD BLK | 1 | $13.73 | |
| 33 | 1606-819 | LEVER,QUICK RELEASE-BACKREST | 1 | $55.95 | |
| 34 | 0623-842 | WASHER, .280X1.75X.086 (MELINITE) | 1 | $12.35 | |
| 35 | 0623-838 | WASHER,FRICTION-.25X1.63X.125 | 1 | $5.92 | |
| 36 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 37 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 38 | 1606-772 | RETAINER,GRIP-PASSENGER | 1 | $17.95 | |
| 39 | 0623-727 | SCREW,SELF TAP-TSPNH 10-16X5/8 TYPE AB Z | 1 | $1.37 | |
| 40 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 43 | 1606-688 | LEVER,QUICK RELEASE-HANDHOLD | 1 | $52.95 | |
| 44 | 0623-837 | WASHER,FRICTION-.25X1.00X.125 | 1 | $5.92 | |
| 45 | 1606-684 | HANDHOLD,PASSENGER-RH | 1 | $137.95 | |
| 45 | 1606-685 | HANDHOLD,PASSENGER-LH | 1 | $137.95 | |
| 46 | 0623-850 | T-NUT, STEEL,1/4-28 SS | 1 | $9.59 | |
| 47 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 48 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 49 | 1606-238 | DEFLECTOR,WIND-RH | 1 | $56.95 | |
| 49 | 1606-239 | DEFLECTOR,WIND-LH | 1 | $56.95 | |
| 50 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 |
