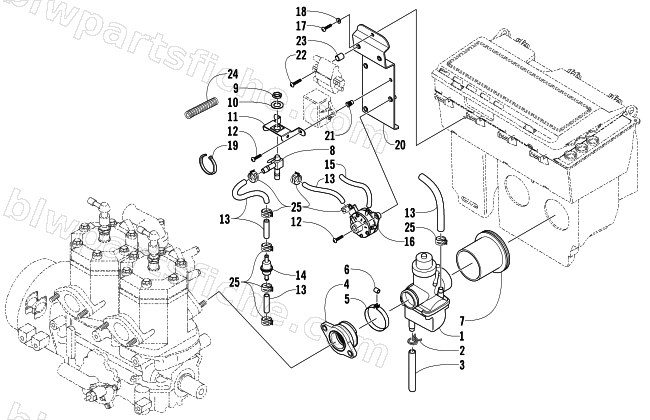

2005 Arctic Cat PANTERA 550 (S2005PTCCAUSB) — CARBURETOR AND FUEL PUMP ASSEMBLY
2005 PANTERA 550 (S2005PTCCAUSB)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-204 | CARB-ASSY VM38-362 97COA/COB/PAB | 1 | $454.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 5 | 0670-199 | CLAMP,CARB FLANGE-VM38 W/SPACER | 1 | $27.95 | |
| 7 | 1670-402 | BOOT, AIR SILENCER | 1 | $26.95 | |
| 8 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 9 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 10 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 11 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 12 | 8017-402 | SCREW,MACH-TSTRH 10-24X1 GR2 Z&Y | 1 | $1.23 | |
| 13 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 13 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 14 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 15 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 16 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 17 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 19 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 20 | 0770-693 | PLATE, MTG-FAB(ENG COMPONENTS) | 1 | $33.95 | |
| 22 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 23 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 24 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 25 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 |
