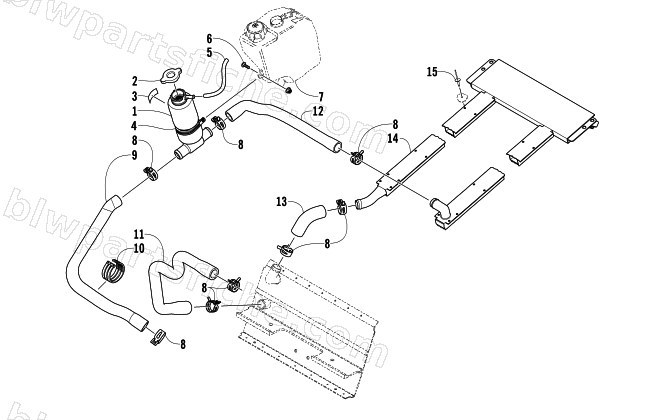

2005 Arctic Cat PANTERA 550 (S2005PTCCAUSB) — COOLING ASSEMBLY
2005 PANTERA 550 (S2005PTCCAUSB)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 2 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 3 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 4 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 5 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 5 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 10 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 11 | 0610-336 | HOSE,COOLANT-(ENG TO FRT EXCH) | 1 | $65.95 | |
| 12 | 0610-379 | HOSE,COOLANT-LH EXCH. TO TANK | 1 | $41.95 | |
| 13 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 14 | 1706-919 | HEAT EXCH,REAR- WELD'T | 1 | $495.95 | |
| 15 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
