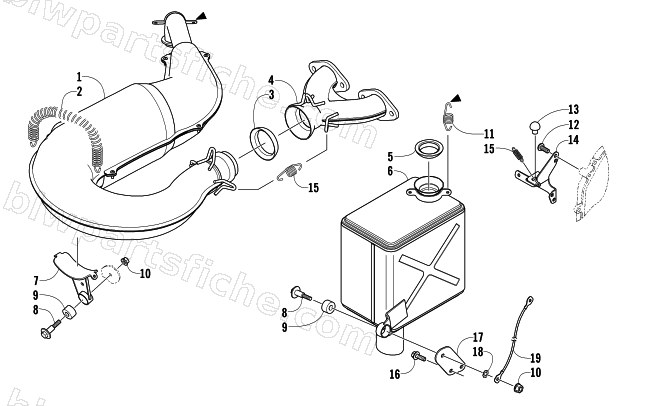

2005 Arctic Cat PANTERA 550 (S2005PTCCAUSB) — EXHAUST ASSEMBLY
2005 PANTERA 550 (S2005PTCCAUSB)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 3 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 5 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 6 | 0712-885 | RESONATOR, EXHAUST-PTD-BLK | 1 | $347.95 | |
| 7 | 0712-330 | BRACKET,MTG - EXP CHAMBER-PTD BLK | 1 | $29.95 | |
| 8 | 0623-856 | SCREW, HEX HEAD SHOULDER-1/4-20 | 1 | $5.95 | |
| 9 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 12 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 13 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 14 | 0712-906 | BRKT, MTG-RESONATOR/DROPCASE-PTD BLK | 1 | $18.95 | |
| 15 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 16 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 17 | 0712-903 | BRKT,RES MTG-FRONT-PTD BLK | 1 | $13.73 | |
| 18 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 19 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 |
