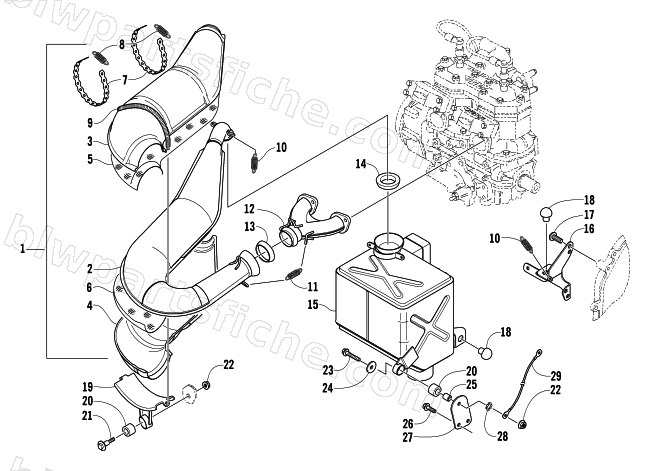

EXHAUST ASSEMBLY
2005 PANTERA 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-833 | CHAMBER, EXP-FAB 600 C | 1 | $729.95 | |
| 2 | 0712-831 | CHAMBER, EXP-600 C-PTD BLK | 1 | $458.95 | |
| 3 | 1612-143 | COVER,EXP CHAMBER UPPER | 1 | $121.95 | |
| 4 | 1612-144 | COVER,EXP CHAMBER LOWER | 1 | $167.95 | |
| 5 | 1612-008 | WRAP,EXP - CHAMBER (99/700) | 1 | $41.95 | |
| 6 | 1612-104 | WRAP, EXP CHAMBER LOWER 99/700 | 1 | $31.95 | |
| 7 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 7 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 8 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 9 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 10 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 11 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 12 | 1712-061 | MANIFOLD, EXHAUST-MACH-600 | 1 | $201.95 | |
| 13 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 14 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 15 | 0712-747 | RESONATOR,EXHAUST-PTD BLK | 1 | $264.59 | |
| 16 | 0712-906 | BRKT, MTG-RESONATOR/DROPCASE-PTD BLK | 1 | $18.95 | |
| 17 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 18 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 19 | 0712-703 | BRACKET,MTG-EXP CHAMBER-PTD BLK | 1 | $47.95 | |
| 20 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 21 | 0623-856 | SCREW, HEX HEAD SHOULDER-1/4-20 | 1 | $5.95 | |
| 22 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 23 | 8020-044 | SCREW,CAP-HFH 1/4-20 X 1.250 Z&Y | 1 | $3.85 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 27 | 0712-883 | BRKT,MTG-RESONATOR-FRT-PTD BLK | 1 | $48.95 | |
| 28 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 29 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 |
