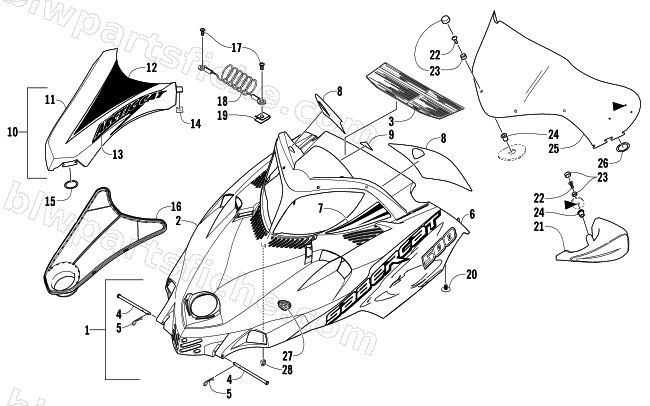

2005 Arctic Cat SABERCAT 500 — HOOD AND WINDSHIELD ASSEMBLY
2005 SABERCAT 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-616 | HOOD W/DECALS-BLK (05 SC 500) | 1 | $1,233.95 | |
| 2 | 1718-636 | HOOD W/O DECALS-BLK | 1 | $1,242.95 | |
| 3 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 3 | 5611-483 | DECAL, CAUTION/WARNING-REVERSE | 1 | $99.95 | |
| 4 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 5 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 6 | 6611-058 | DECAL,HOOD LWR-RH(500 BLK) | 1 | $94.95 | |
| 6 | 6611-059 | DECAL,HOOD LWR-LH(500 BLK) | 1 | $92.95 | |
| 7 | 6611-064 | DECAL,HEADLIGHT-RH | 1 | $19.95 | |
| 7 | 6611-065 | DECAL,HEADLIGHT-LH | 1 | $22.01 | |
| 8 | 6611-066 | DECAL,CONSOLE-RH (BLK) | 1 | $19.25 | |
| 8 | 6611-067 | DECAL,CONSOLE-LH (BLK) | 1 | $16.49 | |
| 10 | 1718-631 | COVER, W/DECALS(SC BLK CARB) | 1 | $554.95 | |
| 11 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 12 | 6611-080 | DECAL,COVER-CREST (S-CAT BLK) | 1 | $42.95 | |
| 13 | 6611-081 | DECAL,COVER "ARCTIC CAT"(S-CAT BLK) | 1 | $29.95 | |
| 14 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 15 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 16 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 17 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 18 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 19 | 1623-052 | NUT,U | 1 | $0.95 | |
| 20 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 22 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 23 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 0617-466 | FOAM,HOOD | 1 | $215.95 | |
| 28 | 0123-394 | CLIP CABLE | 1 | $1.37 |
