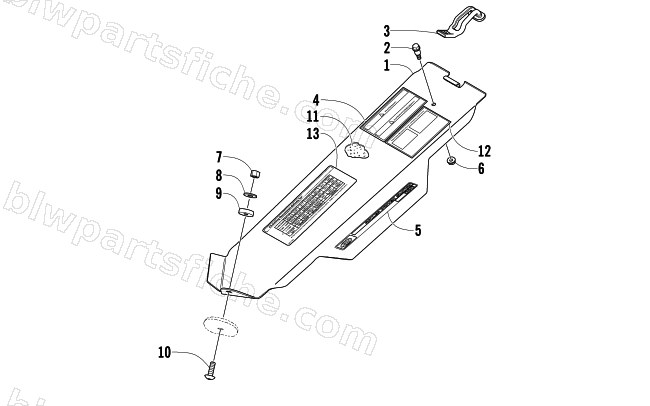

BELT GUARD ASSEMBLY
2005 SABERCAT 600 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0607-822 | GUARD, CLUTCH | 1 | $102.95 | |
| 2 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 4 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 5 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 | |
| 6 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 9 | 1623-046 | WASHER,RUBBER-1.00X.281X.25 | 1 | $1.78 | |
| 10 | 8017-672 | SCREW,MACH-TSTRH 5/16-18 X 1.00 GR2 Z&Y | 1 | $4.68 | |
| 11 | 0617-450 | FOAM,CLUTCH GUARD | 1 | $26.95 | |
| 12 | 5611-862 | DECAL, SPRING ADJUSTMENT | 1 | $12.35 | |
| 13 | 6611-510 | DECAL,CLUTCHING(05 SC 600 LX/EXT) | 1 | $29.95 |
