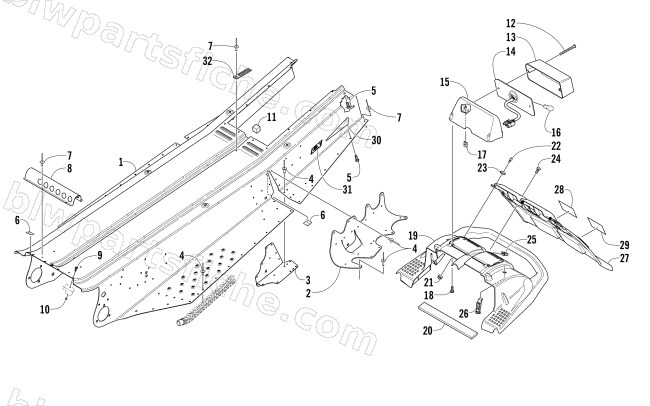

2005 Arctic Cat SABERCAT 600 EFI LX — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2005 SABERCAT 600 EFI LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-568 | TUNNEL, S/P ASSY-'04 SABERCAT-PTD BLK | 1 | $707.95 | |
| 2 | 2706-554 | BRACKET,SUSP.MT. RIGHT REAR-PTD BLK | 1 | $101.95 | |
| 2 | 2706-555 | BRACKET,SUSP.MT. LEFT REAR-PTD BLK | 1 | $95.95 | |
| 3 | 2706-136 | PLATE,BACKING-REAR SUSP-RH-PTD BLK | 1 | $17.87 | |
| 3 | 2706-137 | PLATE,BACKING-REAR SUSP-LH-PTD BLK | 1 | $17.87 | |
| 4 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 4 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 6 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 7 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 8 | 2606-938 | PROTECTOR,WIRING-DRIVEN SHAFT | 1 | $13.95 | |
| 9 | 8017-399 | SCREW,MACH-TSTRH 10-24X5/8 GR2 Z&Y | 1 | $1.37 | |
| 10 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 11 | 0617-455 | FOAM, REAR HEAT EXCH-BLOCK | 1 | $1.95 | |
| 12 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 13 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 14 | 0609-230 | HOUSING,TAILLIGHT-W/SOCKET | 1 | $65.95 | |
| 15 | 0609-624 | HOUSING, TAILLIGHT-BLK | 1 | $72.95 | |
| 16 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 17 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 18 | 1623-109 | SCREW,PLASTITE-TSFH 1/4-10X.500 Z&Y | 1 | $0.75 | |
| 19 | 3606-454 | BUMPER,REAR W/FOAM (S-CAT) | 1 | $144.95 | |
| 20 | 0617-496 | FOAM, REAR HEAT EXCH-STRIP | 1 | $5.95 | |
| 21 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 22 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 23 | 1623-242 | WASHER,BACKING-7MM IDX11/8OD-BLK | 1 | $2.47 | |
| 24 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 25 | 0623-363 | NUT SPEED 1/4-20 U-TYPE 1 BLK | 1 | $1.50 | |
| 26 | 3606-222 | STRAP, STORAGE BOX-STD | 1 | $4.95 | |
| 28 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 29 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 30 | 6611-012 | DECAL, REFLECTOR RED-RH | 1 | $16.49 | |
| 30 | 6611-013 | DECAL, REFLECTOR RED-LH | 1 | $16.49 | |
| 31 | 6611-070 | DECAL,TUNNEL-LX (BLK) | 1 | $14.95 | |
| 31 | 6611-083 | DECAL, TUNNEL-LX (GRN) | 1 | $16.95 | |
| 31 | 6611-259 | DECAL, TUNNEL-LX (RED) | 1 | $13.95 | |
| 32 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
