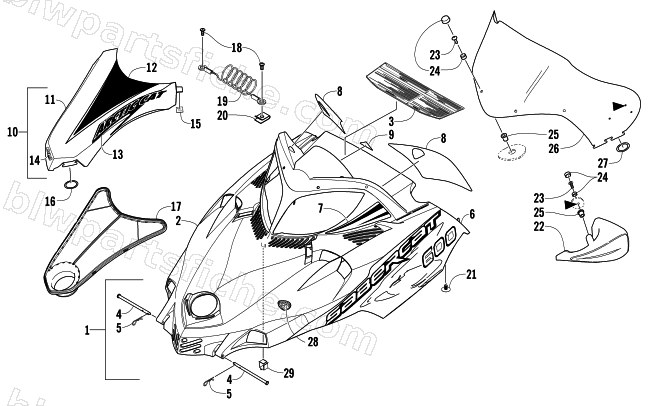

2005 Arctic Cat SABERCAT 600 EFI — HOOD AND WINDSHIELD ASSEMBLY
2005 SABERCAT 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-729 | HOOD W/DECALS-BLK (SC 600) | 1 | $1,240.95 | |
| 1 | 1718-730 | HOOD W/DECALS-GRN (SC 600) | 1 | $1,240.95 | |
| 1 | 1718-731 | HOOD W/DECALS-RED (SC 600) | 1 | $1,240.95 | |
| 2 | 1718-636 | HOOD W/O DECALS-BLK | 1 | $1,242.95 | |
| 2 | 1718-666 | HOOD W/O DECALS-PEARL CAT GRN | 1 | $1,090.95 | |
| 2 | 1718-637 | HOOD W/O DECALS-RED | 1 | $1,090.95 | |
| 3 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 4 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 5 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 6 | 6611-060 | DECAL,HOOD LWR-RH(600 BLK) | 1 | $101.95 | |
| 6 | 6611-061 | DECAL,HOOD LWR-LH(600 BLK) | 1 | $185.95 | |
| 6 | 6611-032 | DECAL,HOOD LWR-RH(600 GRN) | 1 | $100.95 | |
| 6 | 6611-033 | DECAL,HOOD LWR-LH(600 GRN) | 1 | $91.95 | |
| 6 | 6611-234 | DECAL,HOOD LWR-RH (600)RED | 1 | $114.95 | |
| 6 | 6611-235 | DECAL,HOOD LWR-LH (600)RED | 1 | $117.95 | |
| 7 | 6611-064 | DECAL,HEADLIGHT-RH | 1 | $19.95 | |
| 7 | 6611-065 | DECAL,HEADLIGHT-LH | 1 | $22.01 | |
| 7 | 6611-036 | DECAL,HEADLIGHT-RH(GRN) | 1 | $22.01 | |
| 7 | 6611-037 | DECAL,HEADLIGHT-LH(GRN) | 1 | $22.01 | |
| 7 | 6611-238 | DECAL,HEADLIGHT-RH (RED) | 1 | $20.95 | |
| 7 | 6611-239 | DECAL,HEADLIGHT-LH (RED) | 1 | $20.95 | |
| 8 | 6611-066 | DECAL,CONSOLE-RH (BLK) | 1 | $19.25 | |
| 8 | 6611-067 | DECAL,CONSOLE-LH (BLK) | 1 | $16.49 | |
| 8 | 6611-038 | DECAL,CONSOLE-RH(GRN) | 1 | $20.95 | |
| 8 | 6611-039 | DECAL,CONSOLE-LH(GRN) | 1 | $20.95 | |
| 8 | 6611-240 | DECAL, CONSOLE-RH (RED) | 1 | $20.95 | |
| 8 | 6611-241 | DECAL, CONSOLE-LH (RED) | 1 | $20.95 | |
| 10 | 1718-669 | COVER W/DECALS (SC BLK EFI) | 1 | $221.95 | |
| 10 | 1718-629 | COVER W/DECALS (SC GREEN EFI) | 1 | $221.95 | |
| 10 | 1718-665 | COVER W/DECALS (SC RED EFI) | 1 | $221.95 | |
| 11 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 12 | 6611-080 | DECAL,COVER-CREST (S-CAT BLK) | 1 | $42.95 | |
| 12 | 6611-040 | DECAL,COVER-CREST(GRN) | 1 | $43.95 | |
| 12 | 6611-242 | DECAL, COVER-CREST(RED) | 1 | $33.95 | |
| 13 | 6611-081 | DECAL,COVER "ARCTIC CAT"(S-CAT BLK) | 1 | $29.95 | |
| 13 | 6611-042 | DECAL,COVER-RH "ARCTIC CAT" | 1 | $29.95 | |
| 13 | 6611-043 | DECAL,COVER-LH "ARCTIC CAT" | 1 | $22.95 | |
| 13 | 6611-244 | DECAL,COVER-RH "ARCTIC CAT"(RED) | 1 | $29.95 | |
| 13 | 6611-245 | DECAL,COVER-LH "ARCTIC CAT"(RED) | 1 | $29.95 | |
| 14 | 6611-082 | DECAL,COVER NOSE "EFI" | 1 | $17.87 | |
| 14 | 6611-041 | DECAL,COVER-NOSE(EFI)-GRN | 1 | $22.01 | |
| 14 | 6611-243 | DECAL, COVER-NOSE "EFI" | 1 | $17.95 | |
| 15 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 16 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 17 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 18 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 19 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 20 | 1623-052 | NUT,U | 1 | $0.95 | |
| 21 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 23 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 3606-563 | WINDSHIELD, FORMED(05 SC RED) | 1 | $224.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0617-466 | FOAM,HOOD | 1 | $215.95 | |
| 29 | 0123-394 | CLIP CABLE | 1 | $1.37 |
