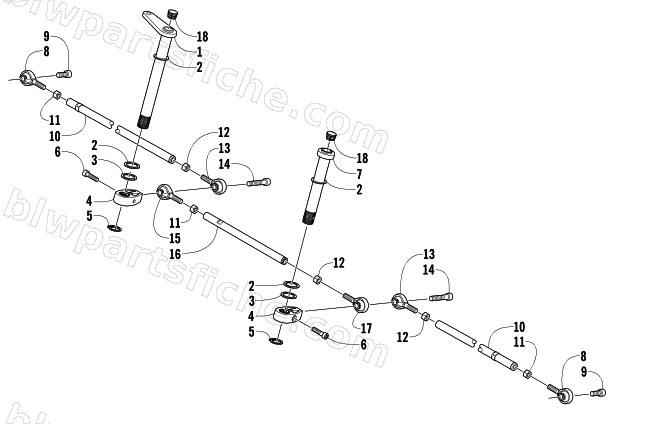

TIE ROD ASSEMBLY
2005 SABERCAT 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-159 | R/B 1705-178 | 1 | $84.95 | |
| 2 | 0623-954 | WASHER,THRUST-.900X1.25X.042 | 1 | $1.92 | |
| 3 | 0623-955 | WASHER,THRUST-.900X1.25X.030 | 1 | $0.95 | |
| 4 | 0605-635 | ARM,BELLCRANK-SPLINED-FORGED | 1 | $53.95 | |
| 5 | 0623-956 | SNAP RING,EXTL-BOWED-7/8 DIA | 1 | $4.40 | |
| 6 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 7 | 1705-045 | BELLCRANK, IDLER-PTD BLK | 1 | $83.95 | |
| 8 | 1605-015 | ROD END,LH-3/8-24 (3/8 BORE) | 1 | $49.95 | |
| 9 | 1623-176 | SCREW,CAP-HSH 3/8-16X1.25 TYPE T | 1 | $1.95 | |
| 10 | 0605-673 | TUBE,TIE ROD-.625 X 12.68" (3/8-24) | 1 | $50.95 | |
| 11 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 12 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 13 | 1605-014 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $32.95 | |
| 15 | 0605-605 | ROD END,LH-3/8-24 (3/8 BORE) | 1 | $71.95 | |
| 16 | 0605-312 | TUBE,TIE ROD SPINDLE -9.051" W/FLATS | 1 | $37.95 | |
| 17 | 0605-606 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $63.95 | |
| 18 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 |
