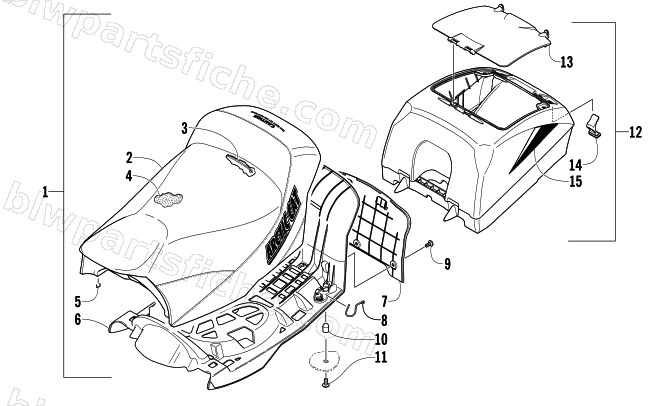

2005 Arctic Cat SABERCAT 700 EFI LX — SEAT AND STORAGE BOX ASSEMBLY
2005 SABERCAT 700 EFI LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-993 | SEAT,MFG ASSY (2005 S-CAT BLK) | 1 | $705.95 | |
| 1 | 7998-034 | SEAT,MFG ASSY(05 S-CAT GRN) | 1 | $549.95 | |
| 1 | 7998-106 | SEAT,MFG ASSY(05 SC RED) | 1 | $626.95 | |
| 2 | 2706-668 | COVER,SEAT (05 S-CAT BLK) | 1 | $556.95 | |
| 2 | 2706-689 | COVER,SEAT (05 S-CAT GRN) | 1 | $365.95 | |
| 2 | 2706-721 | COVER,SEAT (05 SC RED) | 1 | $539.95 | |
| 4 | 0717-176 | FOAM, SEAT (85-90 ILD) .48@5.3 | 1 | $140.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 3606-056 | SEAT BASE-STORAGE | 1 | $97.95 | |
| 7 | 3606-248 | PANEL, SEAT-REAR (SABERCAT) | 1 | $21.95 | |
| 8 | 1623-177 | CLIP,RETAINING SPRING-SEAT | 1 | $2.95 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 1623-138 | LATCH, SEAT | 1 | $16.49 | |
| 11 | 8017-667 | SCREW,MACH-TSTRH 5/16-18 X .50 GR2 Z&Y | 1 | $3.16 | |
| 12 | 3606-074 | BOX, STORAGE-MFG ASSY | 1 | $260.95 | |
| 14 | 3606-357 | STRAP, HOLDDOWN-STORAGE | 1 | $3.44 | |
| 15 | 6611-078 | DECAL,BOX-RH (S-CAT BLK) | 1 | $20.95 | |
| 15 | 6611-079 | DECAL,BOX-LH (S-CAT BLK) | 1 | $22.95 | |
| 15 | 6611-054 | DECAL,BOX-RH (SC GRN) | 1 | $22.95 | |
| 15 | 6611-055 | DECAL,BOX-LH (SC GRN) | 1 | $22.95 | |
| 15 | 6611-256 | DECAL, BOX-RH(RED) | 1 | $22.95 | |
| 15 | 6611-257 | DECAL, BOX-LH(RED) | 1 | $22.95 |
