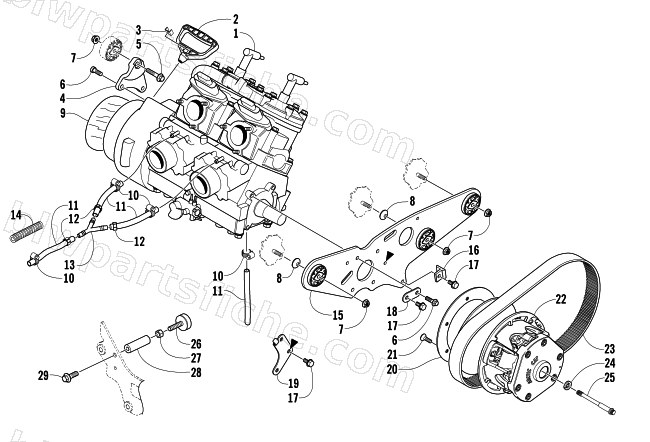

2005 Arctic Cat SABERCAT 700 EFI — ENGINE AND RELATED PARTS
2005 SABERCAT 700 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-407 | ENGINE,700 L/C-CEID(W/O EFI COMP) | 1 | $3,469.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 0608-388 | BRKT,ENG MTG-RH | 1 | $40.95 | |
| 5 | 8020-136 | SCREW,CAP-HFH 5/16-18 X 1.75 G5 Z&Y | 1 | $15.11 | |
| 6 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 8 | 0623-987 | WASHER, BELLVILE-.312 X .930 | 1 | $2.19 | |
| 9 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 10 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 11 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 12 | 0610-581 | CLAMP, HOSE-14.5MM TO 17.0MM | 1 | $2.61 | |
| 13 | 1670-596 | FITTING,Y-5/16 | 1 | $3.44 | |
| 14 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 15 | 0708-431 | BRKT, ENG MTG-LH ASSY | 1 | $419.95 | |
| 16 | 0608-400 | BUMPER,TORQUE-MACH | 1 | $4.54 | |
| 17 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 18 | 0608-407 | PLATE,REINFORCEMENT-MTR MNT FRT-ZINC | 1 | $2.19 | |
| 19 | 0608-397 | PLATE,REINFORCEMENT-MOTOR MOUNT | 1 | $6.95 | |
| 20 | 0645-410 | RING,DAMPER - CLUTCH | 1 | $82.95 | |
| 21 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 22 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 23 | 0627-035 | BELT,DRIVE-S-3D-1.400"WX47.750"OC-DC | 1 | $133.95 | |
| 24 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 25 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 26 | 0608-396 | BUMPER,TORQ.{1.55-1.45}-ENGINE-40 DURO | 1 | $13.73 | |
| 27 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 28 | 0608-394 | TUBE,MTG-SNUBBER | 1 | $36.95 | |
| 29 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 |
