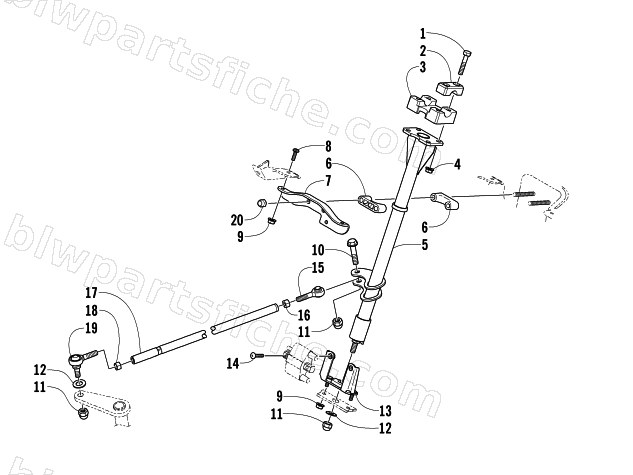

STEERING POST ASSEMBLY
2005 SABERCAT 700 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 2 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 3 | 0605-507 | LOCK,ADJUSTING-STEERING | 1 | $60.95 | |
| 4 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 5 | 0705-844 | POST, STEERING - PTD BLK | 1 | $110.95 | |
| 6 | 0605-576 | BLOCK,MTG-STEERING POST | 1 | $6.75 | |
| 7 | 0605-649 | PLATE, RETAINING - STEERING POST | 1 | $18.95 | |
| 8 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 9 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 10 | 8004-225 | SCREW,CAP-HH 3/8-24X1.50 G5 Z&Y | 1 | $1.23 | |
| 11 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 12 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 13 | 0705-947 | STOP,STEERING POST/COIL-PTD BLK | 1 | $59.95 | |
| 14 | 8017-402 | SCREW,MACH-TSTRH 10-24X1 GR2 Z&Y | 1 | $1.23 | |
| 15 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 16 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 17 | 0605-672 | TUBE,TIE ROD-.625 X 21.17" (3/8-24) | 1 | $39.95 | |
| 18 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 19 | 1605-011 | ROD END,LH-3/8-24 W/STUD | 1 | $43.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 |
