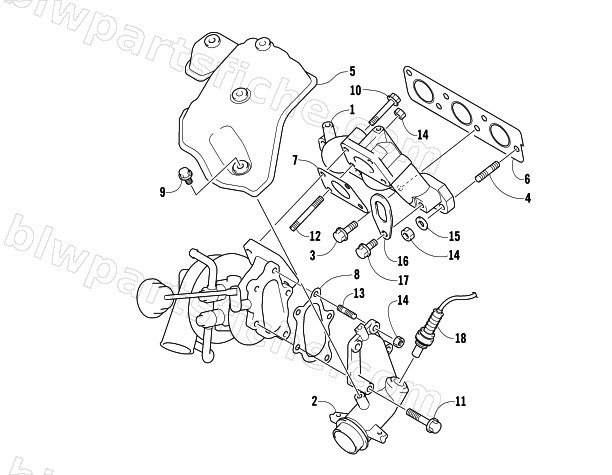

2005 Arctic Cat T660 TURBO ST EFI EARLY BUILD — EXHAUST MANIFOLD ASSEMBLY
2005 T660 TURBO ST EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-829 | MANIFOLD,EXH | 1 | $564.95 | |
| 2 | 3006-830 | PIPE,TURBO OUTLET | 1 | $268.95 | |
| 3 | 3006-877 | BOLT,EXH MANF | 1 | $14.95 | |
| 4 | 3006-878 | STUD BOLT | 1 | $16.49 | |
| 5 | 3006-831 | COVER COMP,EXH MANF | 1 | $127.95 | |
| 6 | 3006-879 | GASKET,EXH MANIFOLD | 1 | $47.95 | |
| 7 | 3006-832 | GASKET,EXH MANF & T/C | 1 | $47.95 | |
| 8 | 3006-833 | GASKET,TC OUTLET PIPE | 1 | $25.95 | |
| 9 | 3006-754 | BOLT,EXH MANF COVER | 1 | $3.44 | |
| 10 | 3006-845 | BOLT,8X35 | 1 | $15.11 | |
| 11 | 3006-846 | BOLT,8X47.5 | 1 | $17.87 | |
| 12 | 3006-847 | STUD BOLT | 1 | $24.95 | |
| 13 | 3006-848 | BOLT,STUD CTLST CASE | 1 | $17.87 | |
| 14 | 3006-111 | NUT,8MM '02 660 L/C | 1 | $2.75 | |
| 15 | 3007-588 | WASHER,EXH MANIFOLD | 1 | $3.95 | |
| 16 | 3006-857 | HOOK,ENGINE | 1 | $16.95 | |
| 17 | 3007-382 | BOLT | 1 | $3.16 | |
| 18 | 3006-588 | SENSOR,OXYGEN | 1 | $473.95 |
