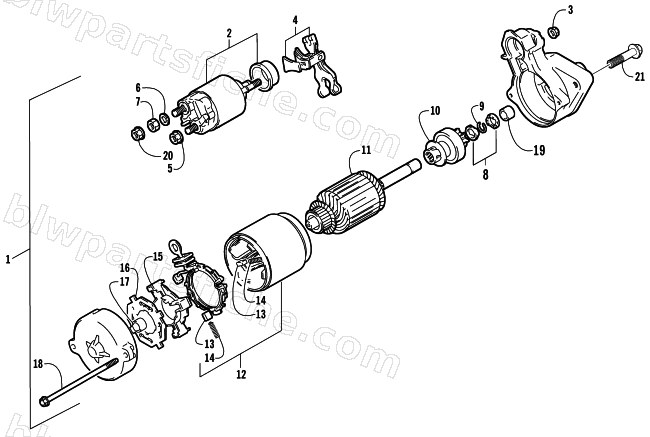

2005 Arctic Cat T660 TURBO ST EFI EARLY BUILD — STARTER MOTOR ASSEMBLY
2005 T660 TURBO ST EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-400 | MOTOR ASSY,STARTING | 1 | $1,280.95 | |
| 2 | 3006-255 | SWITCH ASSY,02 660 L/C | 1 | $544.95 | |
| 3 | 3007-373 | NUT | 1 | $3.16 | |
| 4 | 3006-254 | LEVER,PINION DRIVE 02 660 L/C | 1 | $77.95 | |
| 5 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 6 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 7 | 3007-416 | NUT | 1 | $2.75 | |
| 8 | 3006-257 | NUT COMP,PINION STOP '02 660 L/C | 1 | $27.95 | |
| 9 | 3006-259 | RING,SNAP 02 660 L/C | 1 | $24.77 | |
| 10 | 3006-260 | PINION ASSEMBLY,02 660 L/C | 1 | $373.95 | |
| 11 | 3006-258 | ARMATURE,02 660 L/C | 1 | $993.95 | |
| 12 | 3006-246 | YOKE ASSY,02 660 L/C | 1 | $711.95 | |
| 13 | 3006-247 | BRUSH, '02 660 L/C | 1 | $54.95 | |
| 14 | 3006-248 | SPRING,BRUSH 02 660 L/C | 1 | $17.87 | |
| 15 | 3006-252 | HOLDER,BRUSH 02 660 L/C | 1 | $163.95 | |
| 16 | 3006-253 | INSULATOR,02 660 L/C | 1 | $16.49 | |
| 17 | 3006-251 | BUSH,02 660 L/C | 1 | $28.95 | |
| 18 | 3006-256 | BOLT,02 660 L/C | 1 | $23.39 | |
| 19 | 3006-249 | BUSH,2 660 L/C | 1 | $26.95 | |
| 21 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 |
