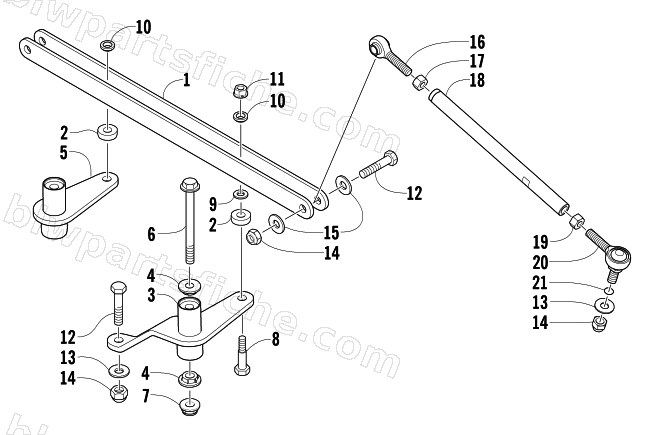

2005 Arctic Cat T660 TURBO ST EFI EARLY BUILD — TIE ROD ASSEMBLY
2005 T660 TURBO ST EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-370 | DRAG LINK W/BEARING | 1 | $269.95 | |
| 3 | 1705-080 | BELLCRANK, STEERING-SUB ASSY | 1 | $73.95 | |
| 4 | 0605-540 | AXLE, BELLCRANK | 1 | $1.64 | |
| 5 | 0705-366 | BELLCRANK,IDLER-ASSY-PTD BLK | 1 | $78.95 | |
| 6 | 8020-234 | SCREW,CAP-HFH 3/8-16 X 4.00 Z&Y | 1 | $6.89 | |
| 7 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 8 | 0623-920 | SCREW, CAP HH-ROLLER DRAGLINK | 1 | $2.95 | |
| 9 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 10 | 0605-522 | AXLE,INNER - DRAG LINK | 1 | $1.95 | |
| 11 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 12 | 8004-226 | SCREW,CAP-HH 3/8-24X1.75 G5 Z&Y | 1 | $1.50 | |
| 13 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 14 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 15 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 16 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 17 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 18 | 0605-352 | TUBE,TIE ROD-SPINDLE - 9.84" W/FLATS | 1 | $32.95 | |
| 19 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 20 | 1605-011 | ROD END,LH-3/8-24 W/STUD | 1 | $43.95 | |
| 21 | 0605-014 | O-RING,RUBBER | 1 | $0.26 |
