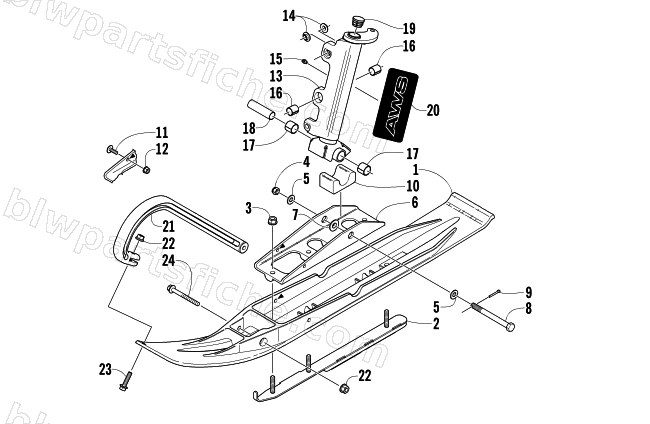

SKI AND SPINDLE ASSEMBLY
2005 T660 TURBO ST
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-109 | SKI,BLK PLASTIC-MACH | 1 | $287.95 | |
| 2 | 2703-598 | SKAG,SPLIT-RH-4"-3 BOLT-.312"-PTD BLK | 1 | $75.00 | |
| 2 | 2703-599 | SKAG,SPLIT-LH-4"-3 BOLT-3.12"-PTD BLK | 1 | $75.00 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 5 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 6 | 1703-501 | SADDLE,SKI-W/INSERTS-PTD PLAT | 1 | $101.95 | |
| 7 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 8 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 9 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 10 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 11 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 12 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 13 | 1703-352 | SPINDLE,RH-FABR PLAT | 1 | $334.95 | |
| 13 | 1703-353 | SPINDLE,LH-FABR PLAT | 1 | $334.95 | |
| 14 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 15 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 16 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 17 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 18 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 19 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 20 | 6611-022 | DECAL, SPINDLE-TURBO ST | 1 | $42.95 | |
| 21 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 22 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 23 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 24 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 |
