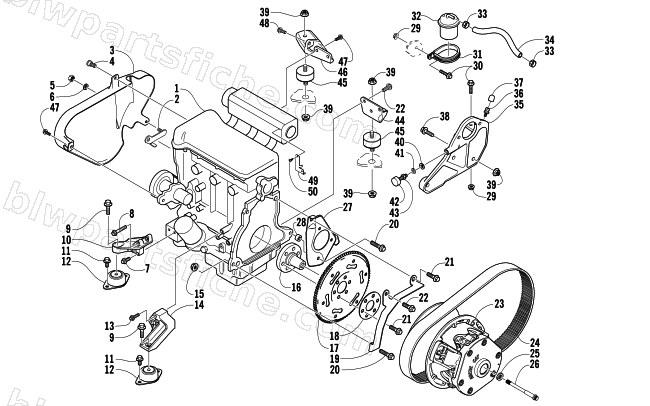

2005 Arctic Cat T660 TURBO — ENGINE AND RELATED PARTS
2005 T660 TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-500 | ENGINE, 660 L/C-TCU-08 PROD | 1 | $4,733.95 | |
| 2 | 1706-930 | BRKT, ALT COVER-WELDT | 1 | $13.73 | |
| 3 | 2606-720 | COVER, ALTERNATOR BELT | 1 | $37.95 | |
| 4 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 5 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 8 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 9 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 10 | 0708-432 | BRKT,ENG,MTG-MAG FRONT(MACH) | 1 | $66.95 | |
| 11 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 12 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 13 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 14 | 0708-464 | BRKT, ENG MTG-PTO-FRT-MACH | 1 | $132.95 | |
| 15 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 16 | 1670-245 | ADAPTER, CRANK-PTO | 1 | $178.95 | |
| 17 | 0745-192 | RING GEAR-PTD-4 STR(03) | 1 | $572.95 | |
| 18 | 3006-243 | PLATE,T/C DRIVE REAR 02 660 L/C | 1 | $52.95 | |
| 19 | 0745-164 | GUARD, RING GEAR-PAINTED | 1 | $56.95 | |
| 20 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 21 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 22 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 23 | 0746-778 | CLUTCH,DRIVE-UNCAL | 1 | $971.95 | |
| 24 | 0627-028 | BELT, WIDE RATIO-REG COMP | 1 | $106.95 | |
| 25 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 26 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 27 | 0745-162 | BRKT,STARTER-PTD BLK | 1 | $149.95 | |
| 28 | 1623-063 | BUSHING, 12MM X 13MM X 1.26 | 1 | $3.95 | |
| 29 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 30 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 31 | 1623-134 | CLAMP, FUEL FILTER | 1 | $10.95 | |
| 32 | 1670-469 | FILTER, FUEL-AC 4 STROKE | 1 | $43.95 | |
| 33 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 34 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 35 | 0708-409 | BRKT, BEARING SUPP-MFG ASSY | 1 | $114.95 | |
| 36 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 37 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 38 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 39 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 40 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 41 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 42 | 0608-358 | BUMPER, TORQUE | 1 | $20.63 | |
| 43 | 8042-516 | NUT,3/8-24 HEX-REG-G5 Z&Y | 1 | $0.40 | |
| 44 | 0708-128 | BRKT,ENG,MTG-PTO REAR(MACH) | 1 | $47.95 | |
| 45 | 0608-118 | MOUNT,ENGINE-DOUBLE MALE | 1 | $26.95 | |
| 46 | 0708-126 | BRKT,ENG,MTG-MAG REAR(MACH) | 1 | $51.95 | |
| 47 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 48 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 49 | 2706-751 | BRKT, FILLERNECK-TURBO-PTD | 1 | $19.95 | |
| 50 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 |
