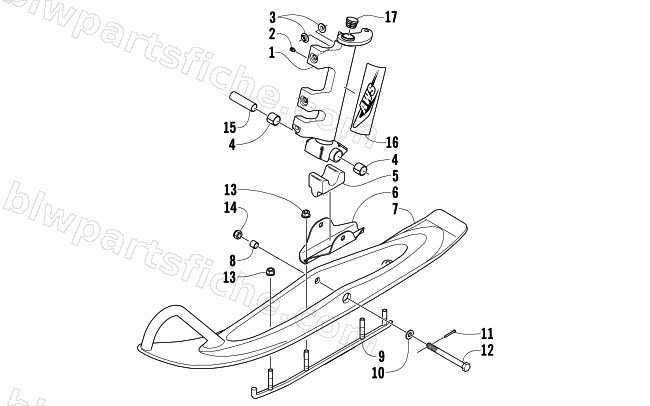

SKI AND SPINDLE ASSEMBLY
2005 Z 370 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-898 | SPINDLE FAB-RH MILLED -PLATINUM | 1 | $348.95 | |
| 1 | 0703-899 | SPINDLE FAB-LH MILLED- PLATINUM | 1 | $357.95 | |
| 2 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 3 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 4 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 5 | 1603-257 | DAMPER,BLOWMOLDED SKI | 1 | $34.95 | |
| 6 | 1603-256 | SADDLE,SKI-PTD BLK | 1 | $50.95 | |
| 8 | 1603-258 | INSERT,BLOWMOLDED SKI | 1 | $13.95 | |
| 9 | 0703-623 | SKAG,HARDWELD-PTD BLK | 1 | $34.95 | |
| 10 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 | |
| 11 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 12 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 13 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 14 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 15 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 16 | 6611-094 | DECAL, SPINDLE-RH-Z'S | 1 | $15.11 | |
| 16 | 6611-095 | DECAL, SPINDLE-LH-Z'S | 1 | $15.11 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
