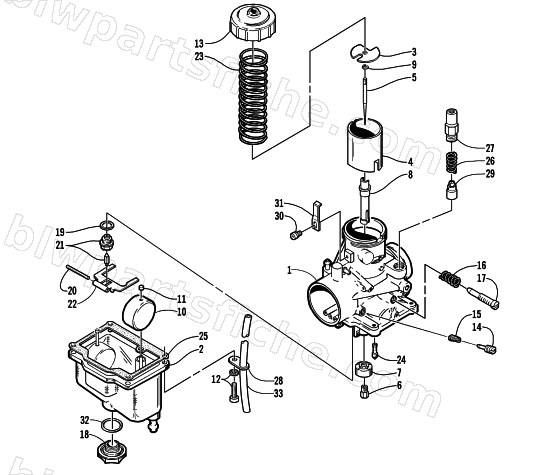

CARBURETOR
2005 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1670-204 | CARB,VM32-304 | 1 | $493.95 | |
| 2 | 6505-631 | FLOAT CHAMBER BODY ASS'Y | 1 | $97.95 | |
| 3 | 6505-001 | PLATE | 1 | $10.95 | |
| 4 | 6505-246 | VALVE PISTON CA2.5 | 1 | $96.95 | |
| 5 | 6505-215 | JET NEEDLE 6DH7 | 1 | $22.01 | |
| 6 | 6505-068 | JET MAIN 250 | 1 | $6.75 | |
| 7 | 6505-620 | RING | 1 | $24.77 | |
| 8 | 6505-247 | NEEDLE JET P-6 (159) | 1 | $31.95 | |
| 9 | 6505-610 | E-RING | 1 | $2.19 | |
| 10 | 6505-009 | FLOAT | 1 | $29.95 | |
| 11 | 6505-010 | CAP | 1 | $1.64 | |
| 12 | 6505-014 | SCREW,CROSS W/WASHER | 1 | $1.64 | |
| 13 | 6505-018 | CHAMBER,MIXING TOP | 1 | $56.95 | |
| 14 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 15 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 16 | 6505-021 | SPRING | 1 | $3.44 | |
| 17 | 6505-101 | SCREW,THROTTLE STOP | 1 | $6.89 | |
| 18 | 6505-617 | PLUG,DRAIN-FLOAT CHAMBER | 1 | $38.95 | |
| 19 | 6505-024 | WASHER,SEAT VALVE | 1 | $1.37 | |
| 20 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 21 | 6505-160 | VALVE,NEEDLE | 1 | $50.95 | |
| 22 | 6505-027 | ARM, FLOAT | 1 | $13.73 | |
| 23 | 6505-579 | SPRING PISTON VALVE-CARB | 1 | $14.95 | |
| 24 | 6505-047 | JET PILOT 40 | 1 | $6.34 | |
| 25 | 6505-030 | GASKET | 1 | $13.73 | |
| 26 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 27 | 6505-188 | CAP,STARTER PLUNGER | 1 | $16.49 | |
| 28 | 6505-608 | PLATE | 1 | $10.97 | |
| 29 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 30 | 6505-036 | SCREW (W/SPRING WASHER) | 1 | $1.37 | |
| 31 | 6505-186 | PLATE | 1 | $4.95 | |
| 32 | 6505-622 | O-RING | 1 | $4.95 | |
| 33 | 6505-280 | TUBE, AIR VENT | 1 | $6.34 |
