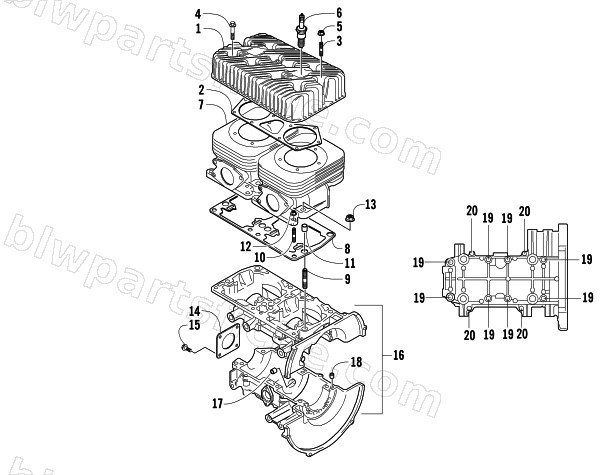

CRANKCASE AND CYLINDER
2005 Z 570 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-997 | HEAD,CYLINDER | 1 | $1,738.95 | |
| 2 | 3005-998 | GASKET,CYLINDER HEAD | 1 | $58.95 | |
| 3 | 3007-478 | STUD BOLT | 1 | $5.37 | |
| 4 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 5 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-999 | CYLINDER (570) | 1 | $802.95 | |
| 8 | 3006-001 | GASKET,CYLINDER | 1 | $34.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3007-480 | BOLT,STUD | 1 | $2.06 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3007-373 | NUT | 1 | $3.16 | |
| 13 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 14 | 3004-775 | PLATE,OIL SEAL 440L/C | 1 | $28.95 | |
| 15 | 3007-392 | BOLT | 1 | $3.95 | |
| 16 | 3007-676 | CRANKCASE ASSY-570 F/C | 1 | $1,334.95 | |
| 17 | 3003-289 | BUSHING,OIL PUMP,M7 | 1 | $5.09 | |
| 18 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 19 | 3005-410 | BOLT, 8X85 | 1 | $5.65 | |
| 20 | 3007-411 | BOLT | 1 | $3.16 |
