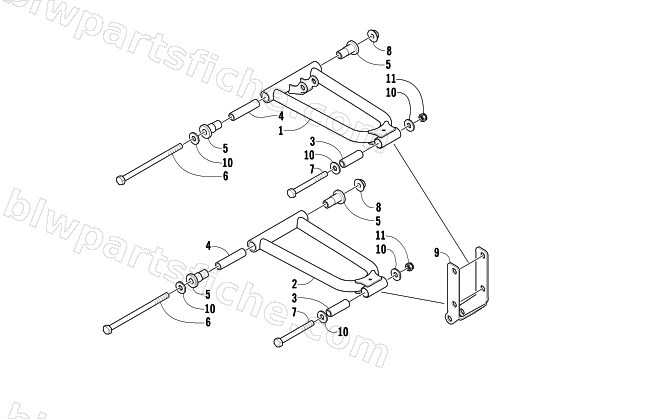

2005 Arctic Cat ZR 120 — A-ARM ASSEMBLY
2005 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-820 | A-ARM, UPPER-MACH-ZR 120 | 1 | $60.95 | |
| 2 | 1703-821 | A-ARM, LOWER-MACH-ZR 120 | 1 | $58.95 | |
| 3 | 1603-365 | AXLE, SUSPENSION | 1 | $4.26 | |
| 4 | 1603-394 | AXLE,INNER A-ARM | 1 | $9.59 | |
| 5 | 0605-451 | AXLE,PWD METAL-BELL CRANK (NO BEARING) | 1 | $5.09 | |
| 6 | 0623-900 | SCREW, CAP-HH 3/8-16X6 G5 ZY | 1 | $13.95 | |
| 7 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 8 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 9 | 1703-644 | R/B 1703-179 | 1 | $19.95 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 |
