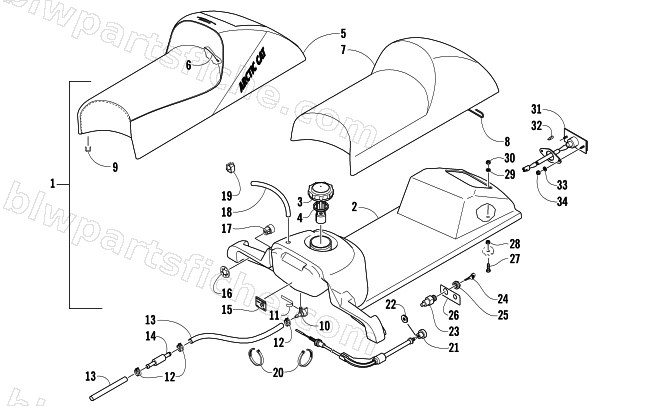

2005 Arctic Cat ZR 120 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2005 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-746 | SEAT, S/P ASSY ZR 120-GRN | 1 | $462.95 | |
| 1 | 1718-747 | SEAT, S/P ASSY ZR 120-RED | 1 | $382.95 | |
| 2 | 1670-969 | TANK, FUEL-120-MULTI LAYER | 1 | $306.95 | |
| 3 | 1670-694 | CAP,GAS-W/GAUGE-06 F 120 | 1 | $42.95 | |
| 4 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 5 | 2706-642 | COVER, SEAT-GREEN ZR 120 | 1 | $495.95 | |
| 5 | 2706-645 | COVER, SEAT-RED ZR 120 | 1 | $163.95 | |
| 6 | 2606-031 | WIRE, SEAT FOAM | 1 | $6.95 | |
| 7 | 1706-017 | FOAM, SEAT(IDL 60-65),48@1.8 | 1 | $102.95 | |
| 8 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 9 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 10 | 0676-017 | VALVE,DRAIN | 1 | $26.95 | |
| 11 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 12 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 13 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 13 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 14 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 15 | 3611-856 | DECAL, FUEL | 1 | $12.35 | |
| 16 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 17 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 18 | 0610-960 | HOSE,VENT-.188X.290X43 | 1 | $15.11 | |
| 19 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 0687-230 | CABLE,CHOKE-120 | 1 | $45.95 | |
| 22 | 0687-181 | NUT,PLASTIC-CHOKE | 1 | $1.64 | |
| 23 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 24 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 25 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 26 | 4611-767 | DECAL,SWITCH/CHOKE-ZR 120 | 1 | $12.95 | |
| 27 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 28 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 29 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 31 | 0609-070 | TAILLIGHT,KITTY CAT | 1 | $54.95 | |
| 32 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 33 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 34 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 |
