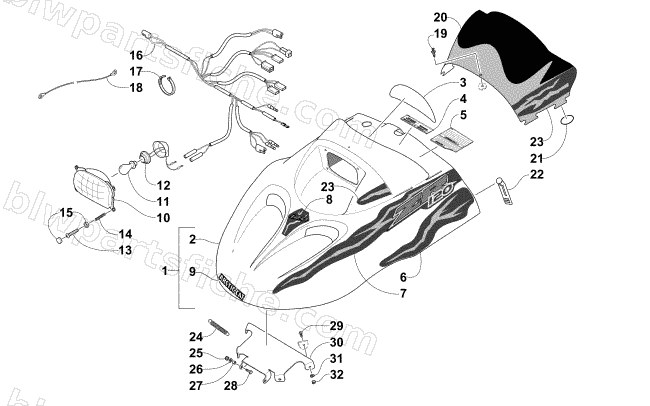

2005 Arctic Cat ZR 120 — HOOD, HEADLIGHT, AND WINDSHIELD ASSEMBLY
2005 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-608 | HOOD W/ DECALS-GREEN-ZR 120 | 1 | $743.95 | |
| 1 | 1718-610 | HOOD W/ DECALS-RED ZR 120 | 1 | $743.95 | |
| 2 | 1718-607 | HOOD W/O DECALS-GREEN-ZR 120 | 1 | $529.95 | |
| 2 | 1718-609 | HOOD W/O DECALS-RED ZR 120 | 1 | $529.95 | |
| 3 | 6611-134 | DECAL, HOOD, CONSOLE-ZR 120 | 1 | $41.95 | |
| 4 | 3611-755 | DECAL, CAUTION-THROTTLE | 1 | $6.47 | |
| 5 | 3611-678 | DECAL,WARNING-HOOD | 1 | $5.95 | |
| 6 | 6611-126 | DECAL, HOOD, LOWER-RH-ZR 120 | 1 | $48.95 | |
| 6 | 6611-127 | DECAL, HOOD, LOWER-LH-ZR 120 | 1 | $48.95 | |
| 6 | 6611-136 | DECAL, HOOD, LOWER-RH-RED ZR 120 | 1 | $45.95 | |
| 6 | 6611-137 | DECAL, HOOD, LOWER-LH-RED ZR 120 | 1 | $45.95 | |
| 7 | 6611-128 | DECAL, HOOD, UPPER-RH-ZR 120 | 1 | $75.95 | |
| 7 | 6611-129 | DECAL, HOOD, UPPER-LH-ZR 120 | 1 | $75.95 | |
| 7 | 6611-138 | DECAL, HOOD, UPPER-RH-RED ZR 120 | 1 | $72.95 | |
| 7 | 6611-139 | DECAL, HOOD, UPPER-LH-RED ZR 120 | 1 | $75.95 | |
| 8 | 6611-132 | DECAL, HOOD, CREST-ZR 120 | 1 | $40.95 | |
| 8 | 6611-135 | DECAL, HOOD-CREST-RED ZR 120 | 1 | $40.95 | |
| 9 | 6611-133 | DECAL, HOOD, FRONT "AC" -ZR 120 | 1 | $22.95 | |
| 9 | 6611-142 | DECAL, HOOD, FRONT "AC"-RED ZR 120 | 1 | $21.95 | |
| 10 | 0609-003 | HEADLAMP ASSY | 1 | $187.95 | |
| 11 | 0609-004 | BULB, HEADLIGHT | 1 | $17.87 | |
| 14 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 15 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 16 | 0686-684 | HARNESS, MAIN | 1 | $120.95 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 0606-121 | HOOD CABLE - 34" | 1 | $15.11 | |
| 19 | 0623-243 | CLIP,HOOD VENT | 1 | $1.50 | |
| 20 | 3606-512 | WINDSHIELD, W/DECALS-GREEN-ZR 120 | 1 | $80.95 | |
| 20 | 3606-516 | WINDSHIELD, W/DECALS-RED ZR 120 | 1 | $106.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 23 | 6611-130 | DECAL, HOOD, WINDSHIELD/LIGHT-RH-ZR 120 | 1 | $24.95 | |
| 23 | 6611-131 | DECAL, HOOD, WINDSHIELD/LIGHT-LH-ZR 120 | 1 | $24.95 | |
| 23 | 6611-140 | DECAL, HOOD, WINDSHIELD-RH-RED ZR 120 | 1 | $22.95 | |
| 23 | 6611-141 | DECAL, HOOD, WINDSHIELD-LH-RED ZR 120 | 1 | $22.95 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 29 | 0623-420 | SCREW,HWH #10-24X5/8 Z&Y | 1 | $0.95 | |
| 30 | 2706-140 | BRKT, UPPER MTG-HOOD-PTD BLK | 1 | $26.95 | |
| 31 | 0623-594 | WASHER,FLAT-.203 X .562 X .040 | 1 | $0.95 | |
| 32 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 |
