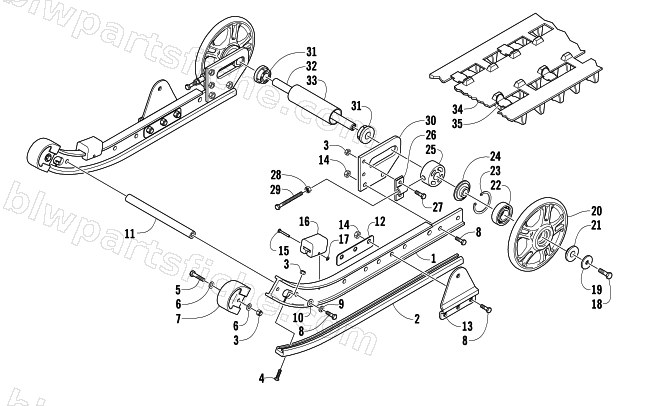

2005 Arctic Cat ZR 120 — SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY
2005 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-705 | RAIL, SLIDE-FORMED | 1 | $73.95 | |
| 2 | 1604-568 | WEARSTRIP,SLIDE RAIL-BLK-Z 120 | 1 | $23.39 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 5 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 8 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 9 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 10 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 11 | 1604-566 | AXLE,CROSSBRACE | 1 | $20.63 | |
| 12 | 0704-897 | PLATE,BACKING-FRONT ARM SUPPORT-PTD BLK | 1 | $12.35 | |
| 13 | 0704-896 | BRKT,SUPPORT-FRT ARM-PTD BLK | 1 | $19.25 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 16 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 17 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 18 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 19 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 20 | 2604-122 | WHEEL,IDLER-5.63 SPOKED-YELLOW | 1 | $51.95 | |
| 21 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 22 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 23 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 24 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 25 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 26 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 27 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 28 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 29 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 30 | 1604-661 | HOUSING, REAR,AXLE | 1 | $32.95 | |
| 31 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 32 | 1604-562 | AXLE,IDLER-REAR | 1 | $37.95 | |
| 33 | 1604-563 | SPACER,REAR AXLE | 1 | $20.63 | |
| 34 | 2602-476 | TRACK, 2.125 X 10.00 X .688 | 1 | $509.95 | |
| 35 | 1602-079 | CLIP, TRACK | 1 | $10.97 |
