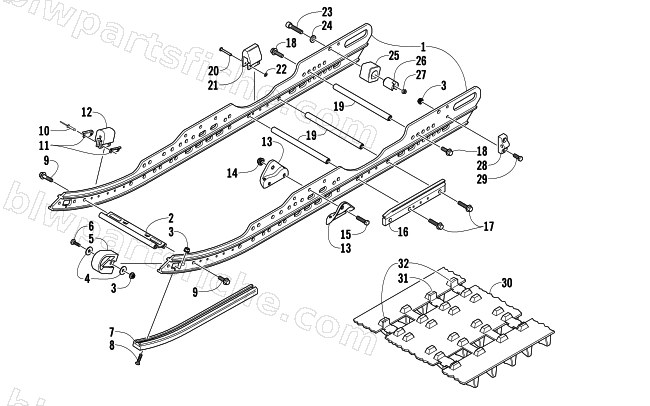

2005 Arctic Cat ZR 900 EFI SNO PRO — SLIDE RAIL AND TRACK ASSEMBLY
2005 ZR 900 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-050 | RAIL, 121"-FORMED-STAMPED (WIDE PROFILE) | 1 | $331.95 | |
| 2 | 1604-109 | SADDLE,FRT ARM SHOCK RES.-MACH. | 1 | $120.95 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 7 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 8 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 9 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 10 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 11 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 14 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 15 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 16 | 1604-488 | BRACE,RAIL-RH (99 PRO) | 1 | $60.95 | |
| 16 | 1604-489 | BRACE,RAIL-LH (99 PRO) | 1 | $60.95 | |
| 17 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 19 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 20 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 22 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 23 | 8005-676 | SCREW, CAP-HSH 3/8-16X1.75 Z&Y | 1 | $1.95 | |
| 24 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 25 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 26 | 2604-046 | BUSHING, REAR ARM COUPLER | 1 | $29.95 | |
| 27 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 28 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 29 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 30 | 1602-506 | TRACK,15X121X1.375, 3/5-12 B | 1 | $500.00 | |
| 31 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 32 | 2602-383 | CLIP,GUIDE | 1 | $4.26 |
