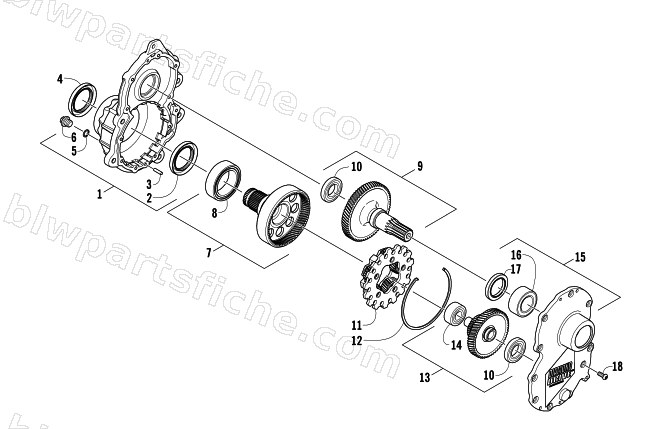

GEARCASE ASSEMBLY
2005 ZR 900 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0702-794 | GEARCASE,DRIVE-66T/54T 5P-ASSY | 1 | $1,344.95 | |
| 0 | 4639-025 | R/B 4639-361 | 1 | $41.70 | |
| 1 | 0702-662 | CASE, GEAR - ASSY | 1 | $122.95 | |
| 2 | 1602-344 | R/B 2402-612 | 1 | $8.95 | |
| 3 | 1602-345 | PIN,DOWEL-3/16 X 3/4 | 1 | $1.50 | |
| 4 | 2602-159 | SEAL,OIL-PRE LUBE-50 X 65 X 8MM | 1 | $24.77 | |
| 5 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 6 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 7 | 0702-928 | KIT,RING GEAR | 1 | $477.95 | |
| 8 | 1602-980 | BEARING,50MMX72MMX20MM-PEER | 1 | $46.95 | |
| 9 | 0702-697 | SHAFT,INPUT-66T W/BEARING-ASSY | 1 | $132.79 | |
| 10 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 | |
| 11 | 1602-349 | GEAR,PLANETARY-5 PINION | 1 | $258.95 | |
| 12 | 1602-731 | RING,RETAINING-PLANETARY GEAR(5.298 DIA) | 1 | $26.95 | |
| 13 | 1702-101 | GEAR,TRANSFER-54T/34T-FWD-SPLINED-ASSY | 1 | $275.95 | |
| 14 | 1602-348 | BEARING,GEAR-OUTPUT-17mmX40mm | 1 | $54.95 | |
| 15 | 0702-664 | COVER,GEARCASE W/BEARING - ASSY | 1 | $120.95 | |
| 16 | 1602-341 | BEARING,SHAFT-INPUT-30MM | 1 | $38.95 | |
| 17 | 1602-342 | SEAL,OIL-36MM X 52MM X 7MM | 1 | $3.30 | |
| 18 | 1623-075 | SCREW,MACH-TSBH 1/4-20X5/8 GR5 Z&Y | 1 | $0.95 |
