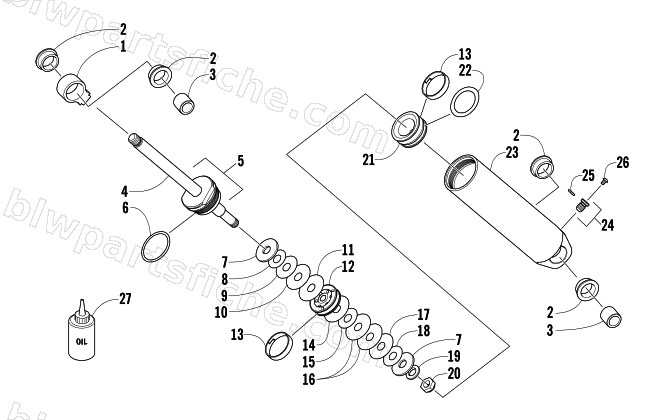

2005 Arctic Cat ZR 900 SNO PRO — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2005 ZR 900 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-763 | EYELET, SHOCK-1.00(PWD METAL) | 1 | $20.95 | |
| 2 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 3 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 5 | 1704-284 | END CAP-47MM-1.150" W/FLAT BLEED ASSY | 1 | $174.95 | |
| 6 | 2604-777 | O-RING,OUTER END CAP 47MM-SIZE 132 | 1 | $10.95 | |
| 7 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 8 | 2603-044 | VALVE,SHOCK- .700 DIA X .008 | 1 | $5.95 | |
| 9 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 10 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 12 | 2604-784 | PISTON,SHOCK-.070 ORIFICE-47MM | 1 | $144.95 | |
| 13 | 2604-780 | STRAP,PISTON-47MM-TEFLON-5.93" | 1 | $51.95 | |
| 14 | 2603-126 | VALVE,SHOCK-1.250 DIA X .012 | 1 | $5.95 | |
| 15 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 16 | 2603-127 | VALVE,SHOCK-1.250 DIA X .015 | 1 | $5.95 | |
| 17 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 18 | 2603-052 | VALVE,SHOCK- .800 DIA X .006 | 1 | $5.95 | |
| 19 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 20 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 21 | 1704-434 | PISTON,FLOATING-47MM-W/ O-RING-ASSY. | 1 | $72.95 | |
| 22 | 2604-779 | O-RING,IFP 47MM-SIZE 325 | 1 | $10.95 | |
| 23 | 2604-775 | BODY, REAR SHOCK 47MM-1.85 X 7.343 | 1 | $407.95 | |
| 24 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 25 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 26 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 27 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 27 | 1704-266 | SHOCK,REAR ARM-ALUM 47MM | 1 | $912.95 |
