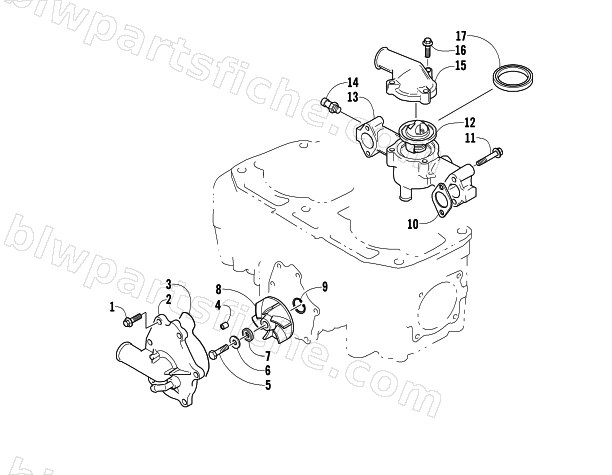

2005 Arctic Cat ZR 900 — WATER PUMP/WATER MANIFOLD ASSEMBLY
2005 ZR 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-409 | BOLT | 1 | $3.16 | |
| 2 | 3006-417 | CASE,WATER PUMP | 1 | $360.95 | |
| 3 | 3005-886 | O-RING, WATER PUMP COVER | 1 | $24.77 | |
| 4 | 3005-899 | PIN | 1 | $3.44 | |
| 5 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 6 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 7 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 8 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 9 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 10 | 3004-260 | GASKET, THERMOSTAT MANIFOLD | 1 | $17.87 | |
| 11 | 3007-411 | BOLT | 1 | $3.16 | |
| 12 | 3004-964 | THERMOSTAT, WATER | 1 | $106.95 | |
| 13 | 3006-698 | MANIFOLD,THERMOSTAT | 1 | $703.95 | |
| 14 | 0630-140 | SWITCH,TEMP-L/C 220F | 1 | $58.95 | |
| 15 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 16 | 3007-380 | BOLT | 1 | $3.16 | |
| 17 | 3003-495 | GASKET,THERMOSTAT | 1 | $15.11 |
