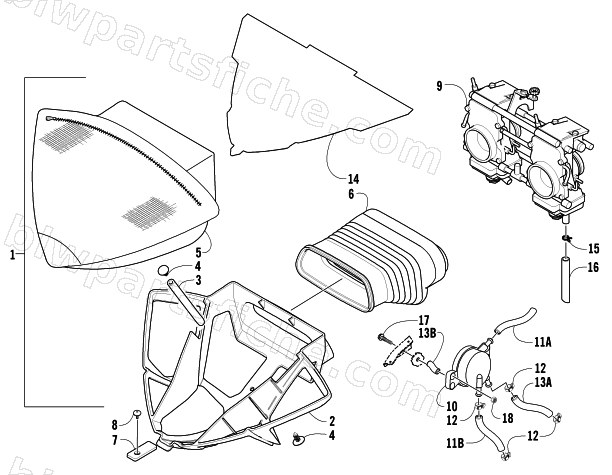

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — AIR SILENCER ASSEMBLY
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-672 | SILENCER,AIR-ASSY | 1 | $352.95 | |
| 2 | 0770-673 | BOTTOM,AIR SILENCER-MACH | 1 | $206.95 | |
| 3 | 1670-645 | TUBE,SUPPORT-AIR SILENCER | 1 | $26.95 | |
| 4 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 5 | 1670-623 | COVER,INTAKE SCREEN | 1 | $155.95 | |
| 6 | 0770-738 | BOOT,AIR SILENCER-MACH | 1 | $105.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 1670-827 | CARB,MOD-SPEEDWERX | 1 | $648.95 | |
| 10 | 1670-665 | PUMP,FUEL-PLASTIC | 1 | $193.95 | |
| 11 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 11 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 14 | 4606-045 | COVER,AIR SILENCER-PLASTIC | 1 | $54.95 | |
| 15 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 16 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 17 | 0623-388 | SCREW,CAP HWH-#10-32 X 2.00 Z&Y | 1 | $1.95 | |
| 18 | 8041-276 | NUT,HEX THIN LOCK-NYL 10-32 Z&Y | 1 | $0.26 |
