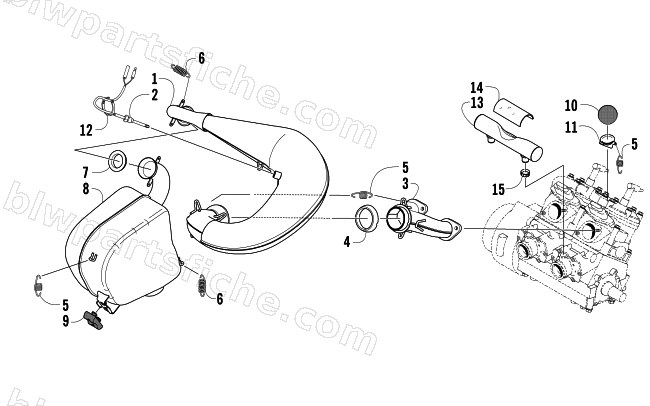

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — EXHAUST ASSEMBLY
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-330 | CHAMBER,EXPANSION-MAG-SPEEDWREX | 1 | $927.95 | |
| 1 | 1712-331 | CHAMBER,EXPANSION-PTO-SPEEDWREX | 1 | $829.95 | |
| 2 | 0630-145 | SENSOR,EXHAUST TEMP-1/4" DIA | 1 | $220.95 | |
| 5 | 2612-142 | SPRING,PIPE-LONG-SPEEDWERX | 1 | $21.95 | |
| 6 | 2612-143 | SPRING,PIPE-SHORT-SPEEDWERX | 1 | $20.95 | |
| 8 | 1712-333 | SILENCER,EXHAUST-SPEEDWERX | 1 | $395.95 | |
| 9 | 1612-685 | MOUNT,RUBBER RESONATOR STANDOFF | 1 | $4.26 | |
| 10 | 1612-678 | BALL, 1 7/8" DIA-MANIFOLD MOUNT | 1 | $32.95 | |
| 12 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
