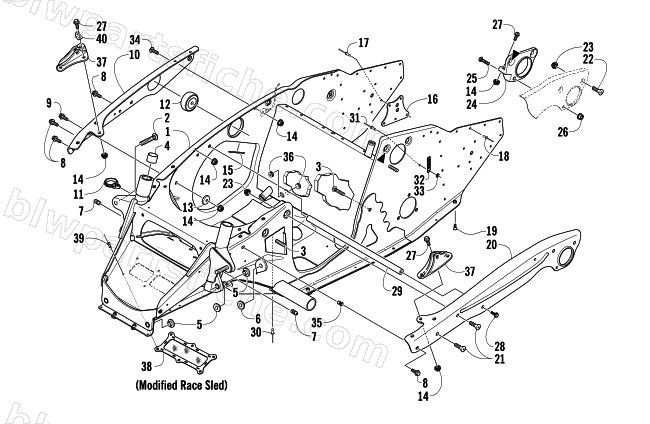

2006 Arctic Cat AC 440 SNO PRO MODIFIED RACE SLED — FRONT FRAME ASSEMBLY
2006 AC 440 SNO PRO MODIFIED RACE SLED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-099 | CHASSIS,FRT END-S/P ASSY | 1 | $1,744.95 | |
| 2 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 3 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 6 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 7 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 8 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 9 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 10 | 3606-899 | BRACE,SIDE PLATE-RH | 1 | $136.95 | |
| 12 | 0608-405 | MOUNT,ENGINE-50 DURO(ROUND) | 1 | $144.95 | |
| 13 | 0623-943 | WASHER,SIDE PLATE BRACE | 1 | $30.95 | |
| 14 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 15 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 16 | 2706-151 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $20.63 | |
| 17 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 18 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 19 | 1623-018 | SCREW,SELF TAP-TSFH 10-16X.50 TYPE B | 1 | $0.26 | |
| 20 | 3606-901 | BRACE,SIDE PLATE-UPR LH | 1 | $171.95 | |
| 21 | 1623-533 | SCREW,MACH-HSFH-5/16-18X.875 | 1 | $4.95 | |
| 22 | 0623-606 | SCREW,MACH- HSFH 5/16-18X1.25 SILVER | 1 | $1.50 | |
| 23 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 24 | 0708-447 | BRKT,BEARING SUPPORT-W/BOLT | 1 | $39.95 | |
| 25 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 26 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 27 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 28 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 29 | 2606-695 | CROSSBRACE,SIDE PLATE | 1 | $61.95 | |
| 30 | 8060-808 | RIVET,BLIND-DH AA86 PL | 1 | $1.37 | |
| 31 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 32 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 33 | 1623-236 | WASHER,BACK-UP 5/32-in. | 1 | $0.15 | |
| 34 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 35 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 36 | 1623-436 | PLUG,PIPE-1/8-27 | 1 | $1.95 | |
| 37 | 1705-150 | MOUNT,SUPPORT-MACH RH | 1 | $26.95 | |
| 37 | 1705-151 | MOUNT,SUPPORT-MACH LH | 1 | $26.95 | |
| 38 | 1670-517 | SCREEN, VENT-AIR SILENCER | 1 | $85.95 | |
| 39 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 40 | 2612-141 | TAB,SPRING-RUMAR GOLD-SPEEDWERX | 1 | $16.95 |
