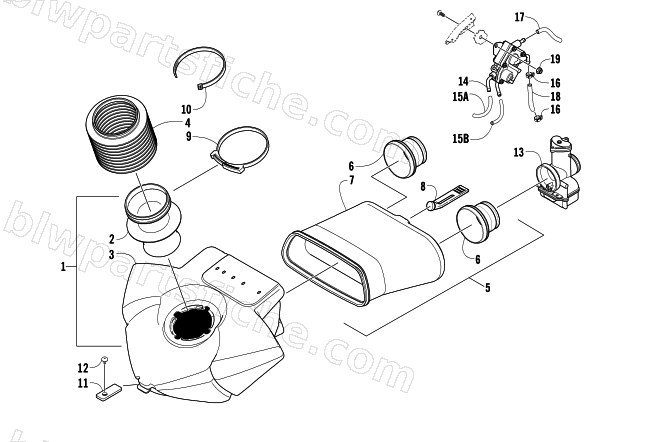

2006 Arctic Cat AC 440 SNO PRO — AIR SILENCER ASSEMBLY
2006 AC 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-720 | SILENCER,AIR-ASSY | 1 | $132.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1670-676 | BOOT,AIR SILENCER-ASSY | 1 | $145.95 | |
| 6 | 1670-677 | BOOT,CARB | 1 | $45.95 | |
| 7 | 1670-678 | EXTENSION,INTAKE-RTD | 1 | $160.95 | |
| 8 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 9 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 10 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 11 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 1670-807 | CARB,TMX34-37 | 1 | $418.95 | |
| 14 | 1670-269 | PUMP, FUEL - LAYDOWN | 1 | $185.95 | |
| 15 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 15 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 16 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 17 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 17 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 18 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 19 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
