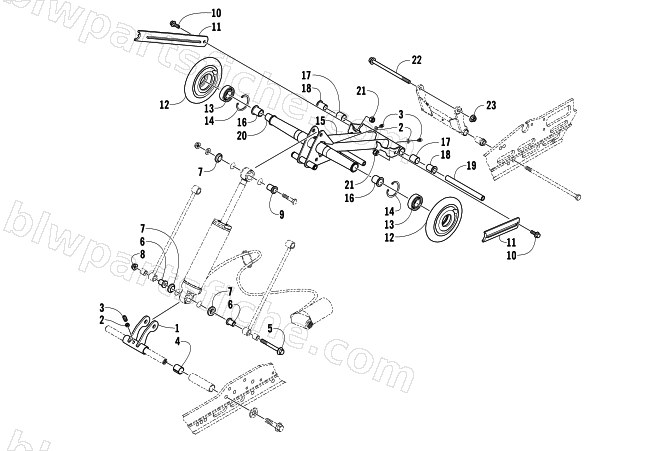

2006 Arctic Cat AC 440 SNO PRO — REAR ARM KIT
2006 AC 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-630 | PIVOT,REAR SHOCK-FABR | 1 | $31.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 8026-414 | SCREW,CAP-HFH 1/2-13 X 4 GR8 Z&Y | 1 | $5.65 | |
| 6 | 3604-209 | AXLE, LINK-FLANGED | 1 | $15.11 | |
| 7 | 3604-210 | SPACER, BEARING-.500 ID | 1 | $6.75 | |
| 8 | 8047-610 | NUT,HEX FLG-NY LOCK 1/2-13 GR G Z&Y | 1 | $2.75 | |
| 9 | 3604-127 | SPACER,SPHERICAL BEARING | 1 | $51.95 | |
| 10 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 11 | 3604-231 | BRACE,SUPPORT-IDLER ARM | 1 | $60.95 | |
| 12 | 3604-230 | WHEEL,IDL-6.38(NO INSR)W/HOLE | 1 | $110.95 | |
| 13 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 14 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 15 | 1704-579 | ARM,IDLER-FABR | 1 | $425.95 | |
| 16 | 3604-223 | BEARING,FLANGED-PLASTIC | 1 | $15.11 | |
| 17 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 18 | 3604-222 | BUSHING,AXLE | 1 | $34.95 | |
| 19 | 3604-226 | AXLE,ALUM-.622 X 6.817 | 1 | $73.95 | |
| 20 | 3604-227 | AXLE,ALUM-INNER CARRIAGE-.749X13.810 | 1 | $70.95 | |
| 21 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 22 | 1623-674 | SCREW,CAP-HH 3/8-16X7.8 GR 5 Z&Y | 1 | $20.63 | |
| 23 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 |
