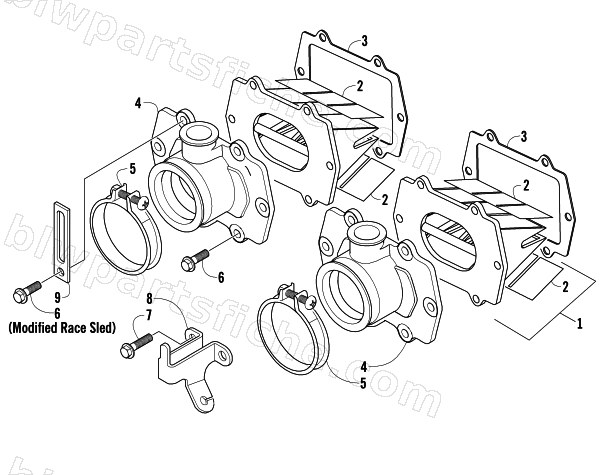

2006 Arctic Cat AC 440 SNO PRO — REED VALVE ASSEMBLY
2006 AC 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2900-015 | VALVE,REED-ASSY-V-FORCE | 1 | $264.95 | |
| 2 | 2900-016 | PETAL,V-FORCE REEDS | 1 | $136.95 | |
| 3 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 4 | 3007-038 | PIPE COMP,INTAKE | 1 | $164.95 | |
| 5 | 3402-086 | CLAMP,M50 | 1 | $12.35 | |
| 6 | 3007-409 | BOLT | 1 | $3.16 | |
| 7 | 3007-380 | BOLT | 1 | $3.16 | |
| 8 | 2606-836 | BRKT,MTG-OIL CABLE | 1 | $57.95 |
