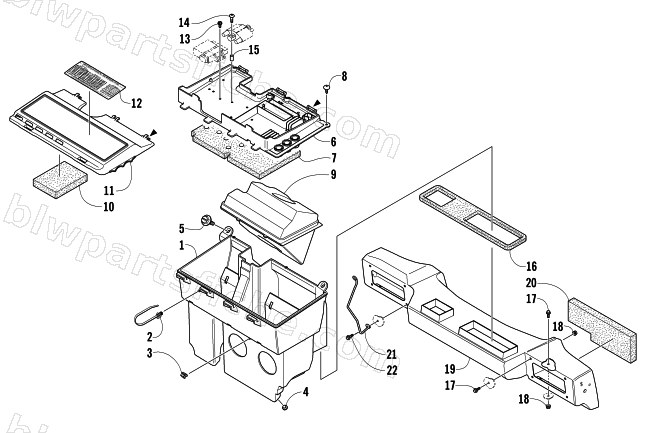

AIR SILENCER ASSEMBLY
2006 BEARCAT 570 LONG TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-536 | SILENCER, AIR-570 F/C - FAB | 1 | $120.95 | |
| 2 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 3 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 4 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 5 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 6 | 1670-197 | COVER, AIR SILENCER,UNROUTED | 1 | $41.95 | |
| 7 | 0617-393 | FOAM,AIR SILENCER-TOP LID | 1 | $14.95 | |
| 8 | 0623-727 | SCREW,SELF TAP-TSPNH 10-16X5/8 TYPE AB Z | 1 | $1.37 | |
| 9 | 1670-061 | RESONATOR, Q-WAVE-INLET-44MM | 1 | $41.95 | |
| 10 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 11 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 12 | 7611-142 | DECAL, JET CHART-06 BCLT 570 | 1 | $30.95 | |
| 14 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 15 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 16 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 17 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 1670-327 | PLENUM, AIR SILENCER,ROUTED(CARB) | 1 | $75.95 | |
| 20 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 21 | 0707-705 | WIREFORM, GUIDE-HARNESS/ROPE-PTD BLK | 1 | $16.49 | |
| 22 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 |
