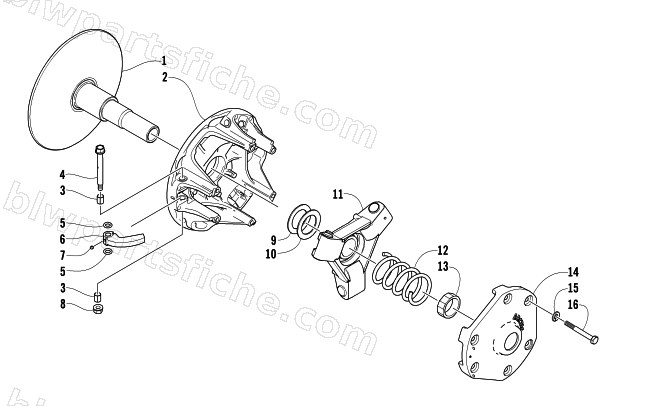

DRIVE CLUTCH
2006 BEARCAT 570 LONG TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 0 | 4639-674 | KIT,CAM ARM REPAIR '05-'09(WIDE) | 1 | $58.95 | |
| 1 | 0646-276 | SHEAVE, STATIONARY - MACH | 1 | $245.95 | |
| 2 | 0746-161 | SHEAVE-ASSY-8.5" | 1 | $184.29 | |
| 3 | 0646-372 | BEARING,CAM ARM PIN (05DP08) | 1 | $1.37 | |
| 4 | 0646-747 | PIN, CAM ARM | 1 | $17.87 | |
| 5 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 6 | 0746-687 | ARM, CAM -WIDE 57 GRAM/SET SCREW | 1 | $9.59 | |
| 6 | 0746-692 | ARM, CAM W/SET SCREW-50 GRAM | 1 | $9.95 | |
| 7 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 8 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 9 | 0646-377 | SPACER, CLUTCH-SPIDER | 1 | $35.95 | |
| 10 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 11 | 0746-115 | SPIDER-ASSY-MACH | 1 | $354.95 | |
| 12 | 0646-149 | SPRING,CLUTCH-RED | 1 | $57.95 | |
| 13 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 14 | 0746-160 | COVER, DRIVE CLUTCH-ASSY | 1 | $102.95 | |
| 15 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 16 | 1623-442 | SCREW, CAP-HH 1/4-20X2.50 GD 8 | 1 | $1.23 |
