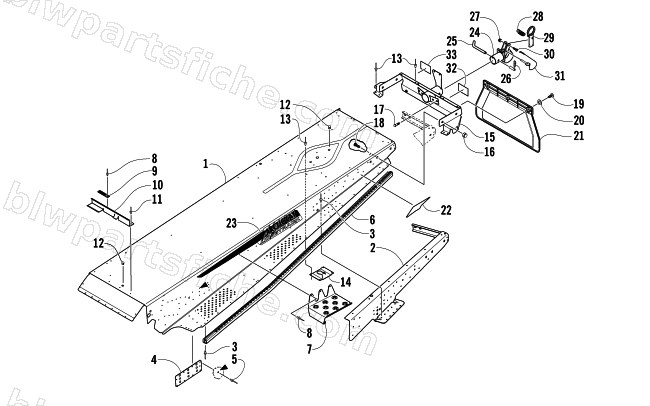

2006 Arctic Cat BEARCAT 570 LONG TRACK — TUNNEL, REAR BUMPER, AND HITCH ASSEMBLY
2006 BEARCAT 570 LONG TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-603 | TUNNEL, SP ASSY(UNPTD) | 1 | $666.95 | |
| 2 | 0707-792 | BRKT, REAR SUSP-PTD-RH | 1 | $109.95 | |
| 2 | 0707-793 | BRKT, REAR SUSP-PTD-LH | 1 | $109.95 | |
| 3 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 4 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 5 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 6 | 3606-166 | ROLL, TUNNEL-FORMED-RH | 1 | $81.95 | |
| 6 | 3606-167 | ROLL, TUNNEL-FORMED-LH | 1 | $70.95 | |
| 7 | 4606-006 | FOOTREST-RH | 1 | $102.95 | |
| 7 | 4606-007 | FOOTREST-LH | 1 | $223.95 | |
| 8 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 0707-704 | BRKT, MAIN HARNESS PROTECTOR-PTD BLK | 1 | $17.95 | |
| 11 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 12 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 13 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 15 | 2706-371 | BUMPER, REAR-PTD | 1 | $244.95 | |
| 16 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 17 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 18 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 19 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 20 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 21 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 22 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 22 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 23 | 6611-552 | DECAL, TUNNEL-RH-BCLT | 1 | $33.95 | |
| 23 | 6611-553 | DECAL, TUNNEL-LH-BCLT | 1 | $33.95 | |
| 24 | 2706-853 | HITCH, PINTLE-PLATED- 05 HD | 1 | $218.95 | |
| 25 | 2606-933 | RECEIVER-PINTLE HITCH | 1 | $13.95 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 28 | 0602-651 | SPRING,RETURN-ACTUATOR ARM | 1 | $5.65 | |
| 29 | 2706-503 | LATCH, PINTLE HITCH-PLATED Z&Y | 1 | $61.95 | |
| 30 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 31 | 3606-903 | PIN, LOCK-PINTLE HITCH-LG HOOK | 1 | $17.95 | |
| 32 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 33 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 |
